1.URL

http://124.223.60.234:8181/spartan/device/queryDeviceInfoByModuleId

2.Request parameters

2.1.Example

{
    "moduleId":"162070003356"
}

2.2.Parameter Description

Field Type Description Is it necessary
moduleId String The ID of the device communication module (IMEI) Yes

3.接口应答

3.1.返回示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": {
        "deviceId": "589D6C6B4678434FB962971BA8513432",
        "serialNum": "162070003356",
        "deviceName": "162070003356",
        "moduleId": "162070003356",
        "iccid": "162070003356",
        "modelId": 100,
        "model": "VM-400"
    }
}

3.2.Explanation of response results

Field Type Description
code int Return Status（200:Succeed;102:Parameter error;105:request failure;106:Data does not exist）
message String Return Status Description
data object Response result body

data Description

Field Type Description
deviceId String The unique tag generated after the device is registered with the system by the user
serialNum String device serial number (12 bits)
deviceName String User defined device name
moduleId String The ID of the device communication module (IMEI)
iccid String ICCID
modelId int System defined device type ID
model String Device model

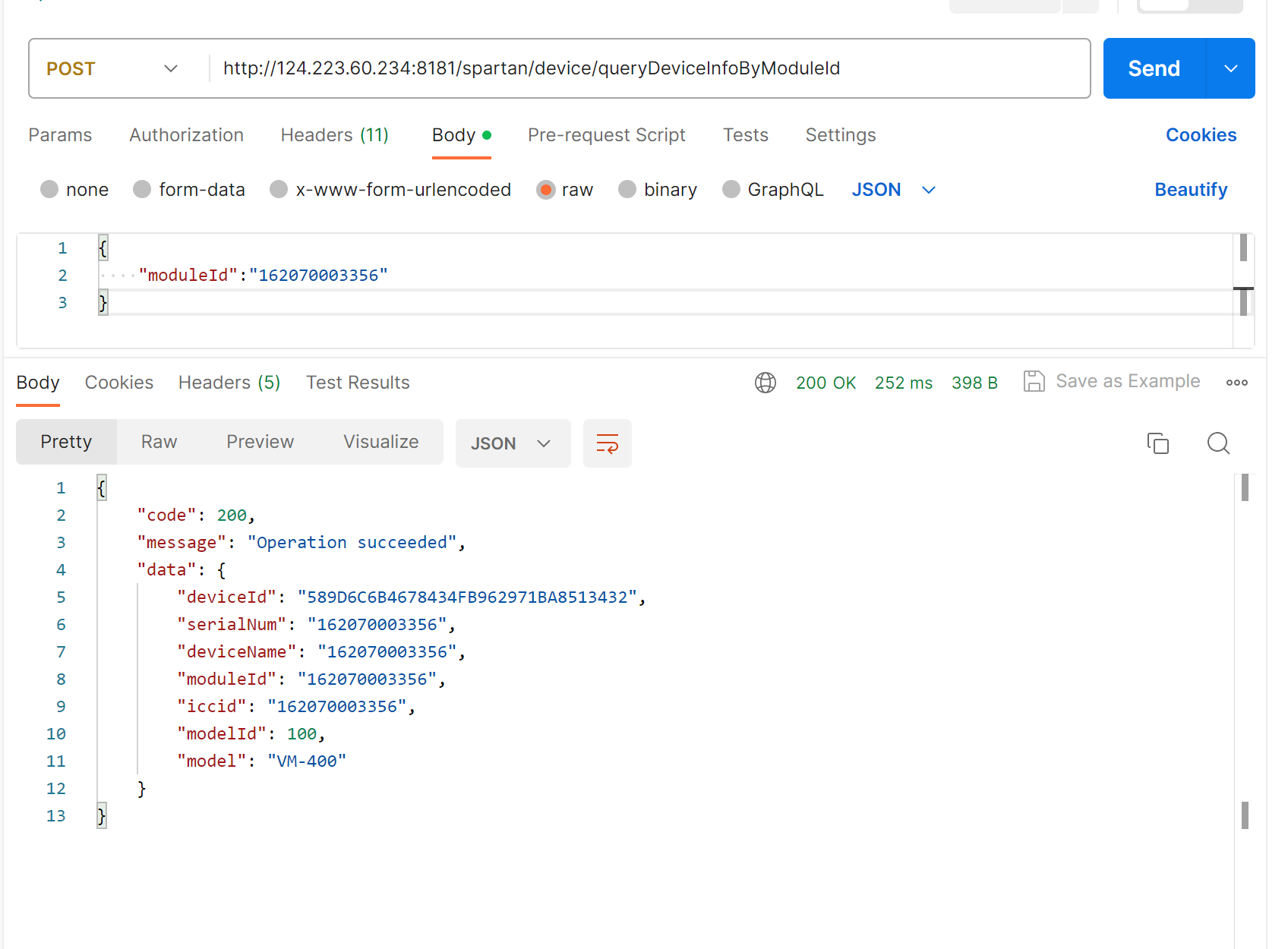

4.Request by postman
