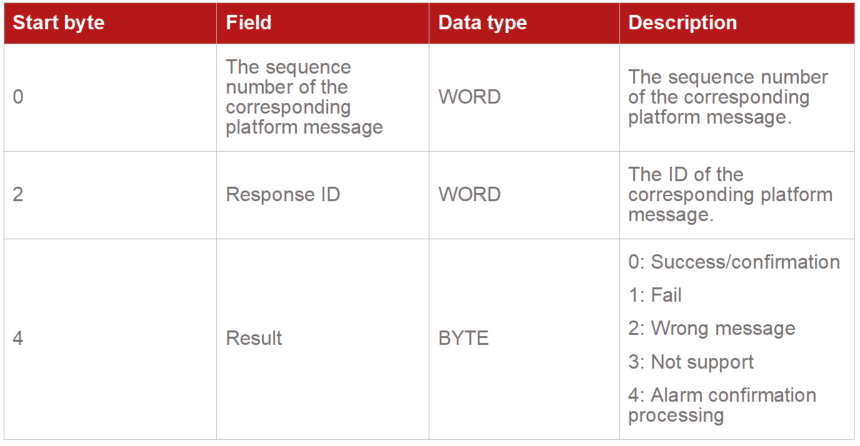

1.Device General Response (0x0001)

Message ID: 0x0001

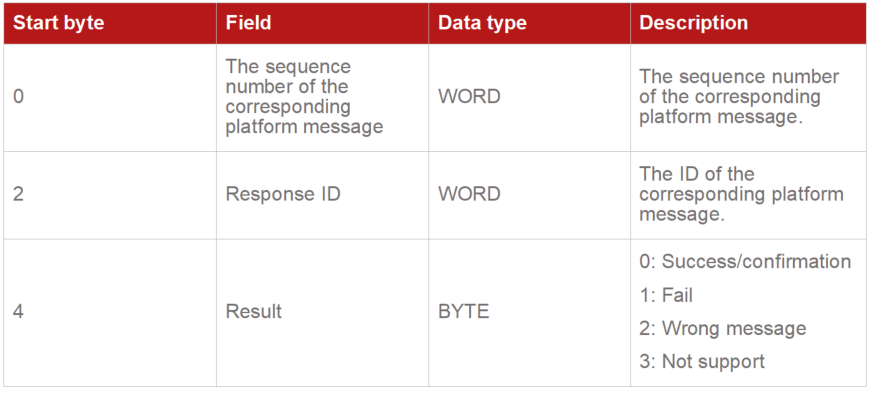

2.Platform General Response (0x8001)

Message ID: 0x8001

3.Device Heartbeat(0x0002)

Message ID:0x0002
The device heartbeat data message body is empty.

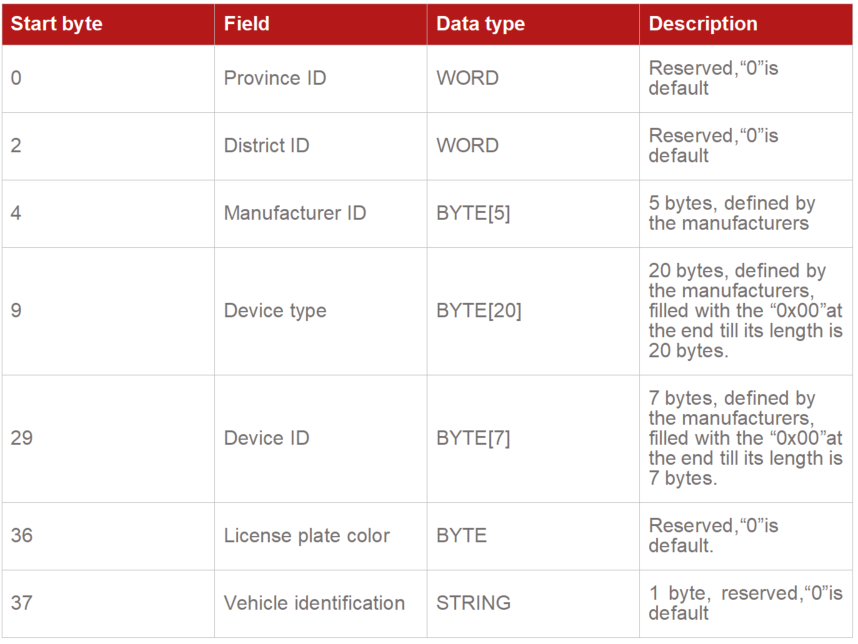

4.Device Registration (0x0100)

Message ID:0x0100

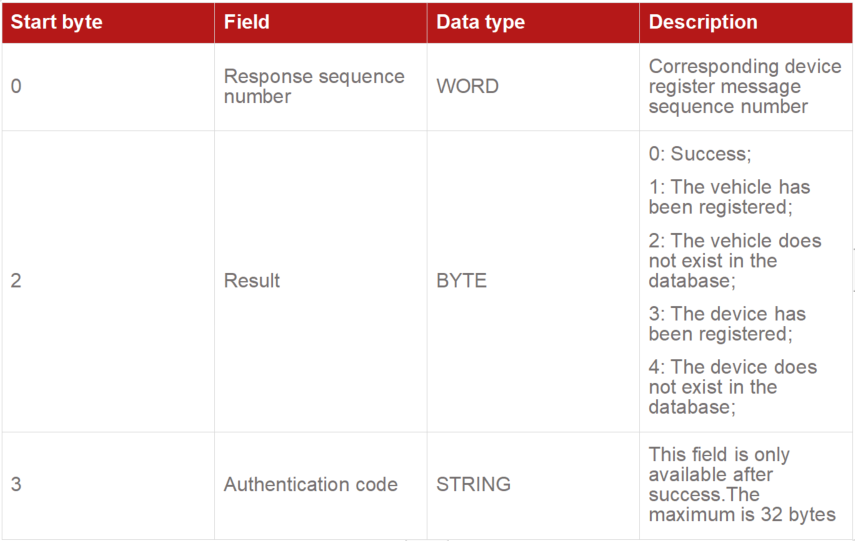

5.Device Register Response (0x8100)

Message ID: 0x8100

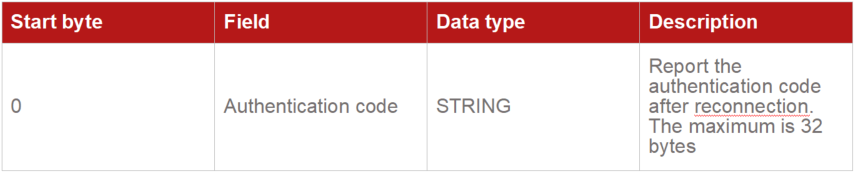

6.Device Authentication (0x0102)

Message ID:0x0102

7.Set Device Parameters (0x8103)

Message ID: 0x8103

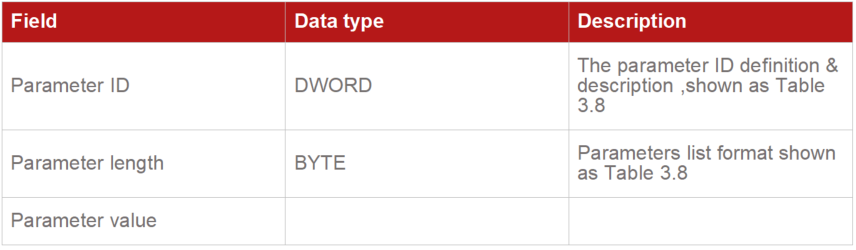

Device Parameters Item Data Format

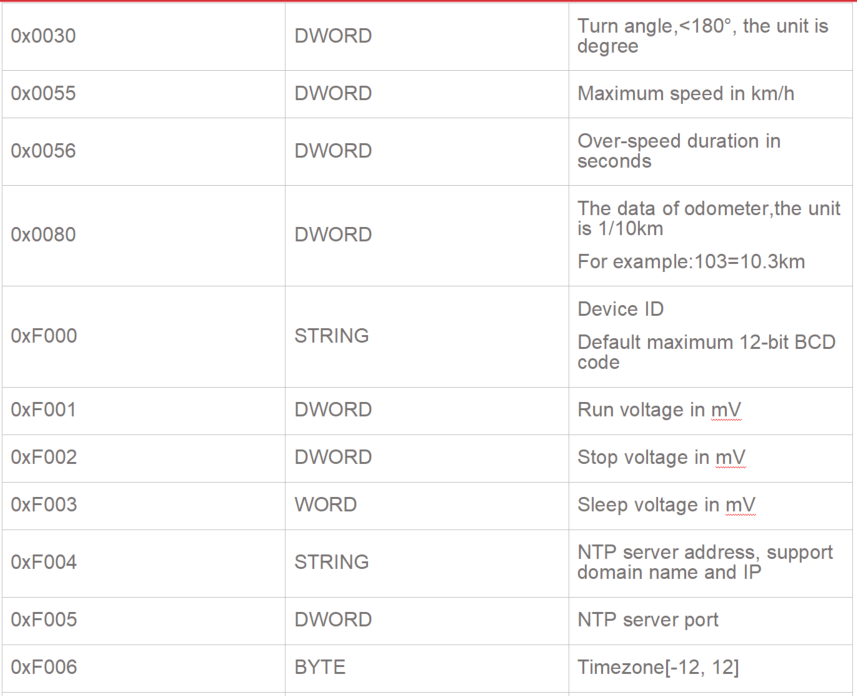

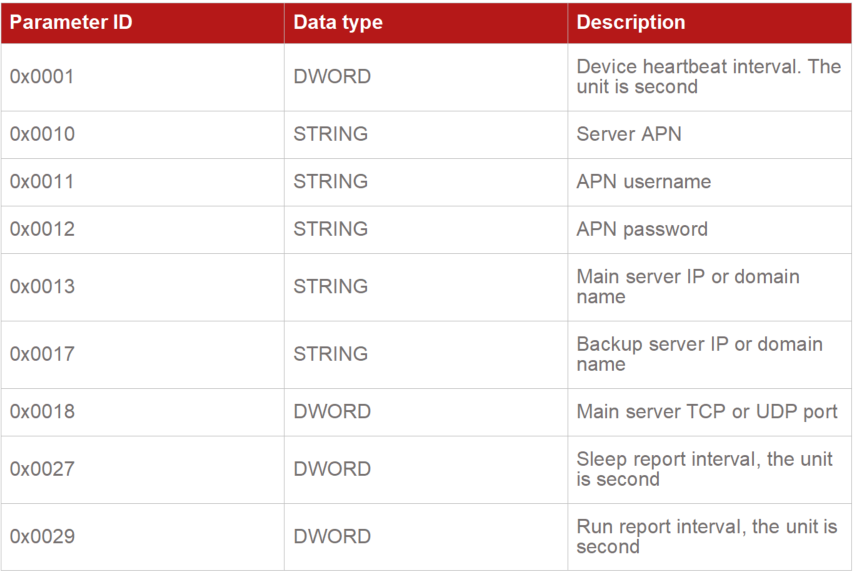

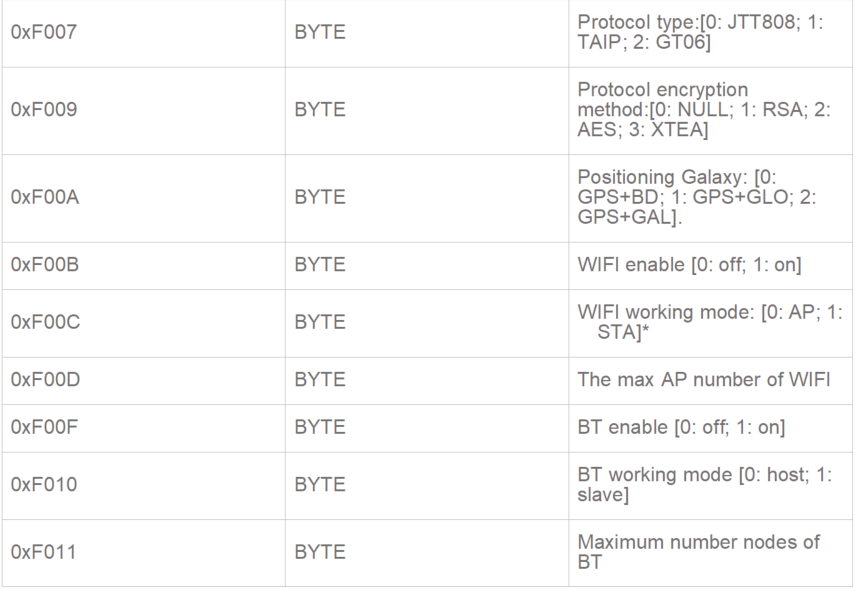

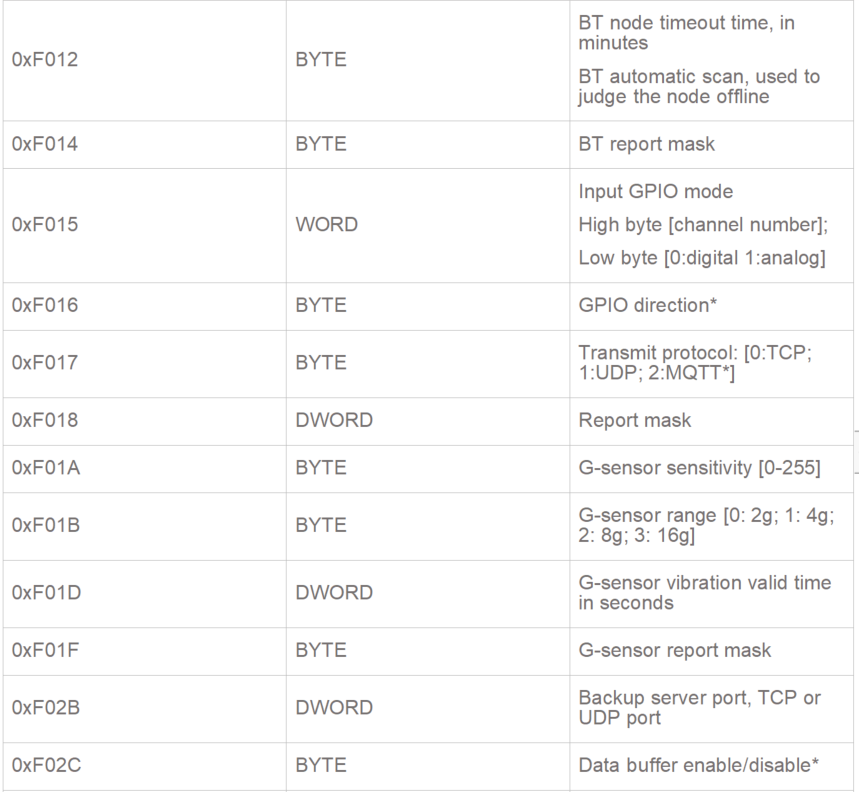

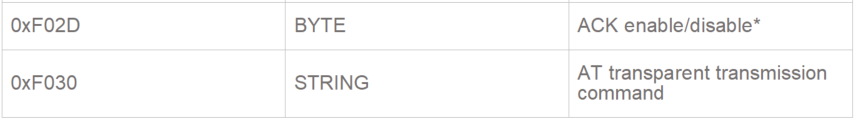

Parameter List

8.Query Device Parameters (0x8104)

Message ID: 0x8104
Query device parameters message body is empty.

9.Query Device Parameter Response (0x0104)

Message ID: 0x0104

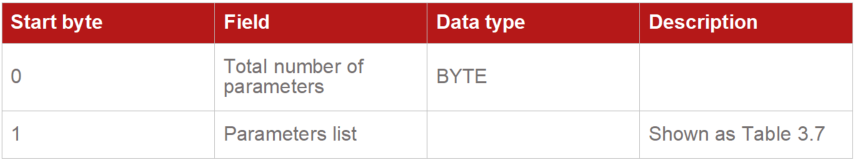

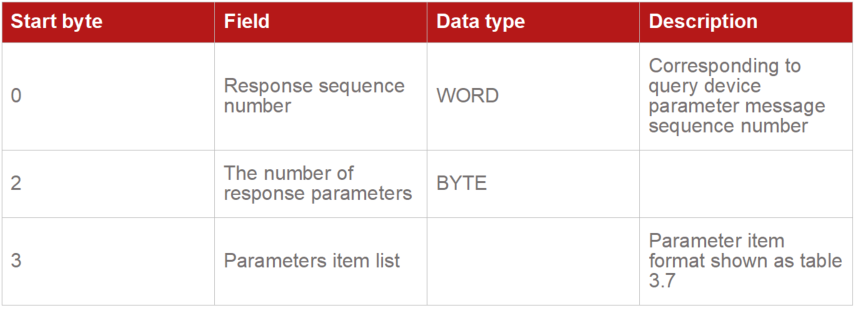

Query device parameter response message data format.

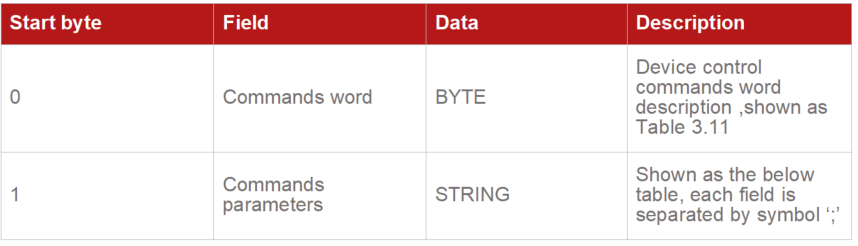

10.Device Control (0x8105)

Message ID:0x8105

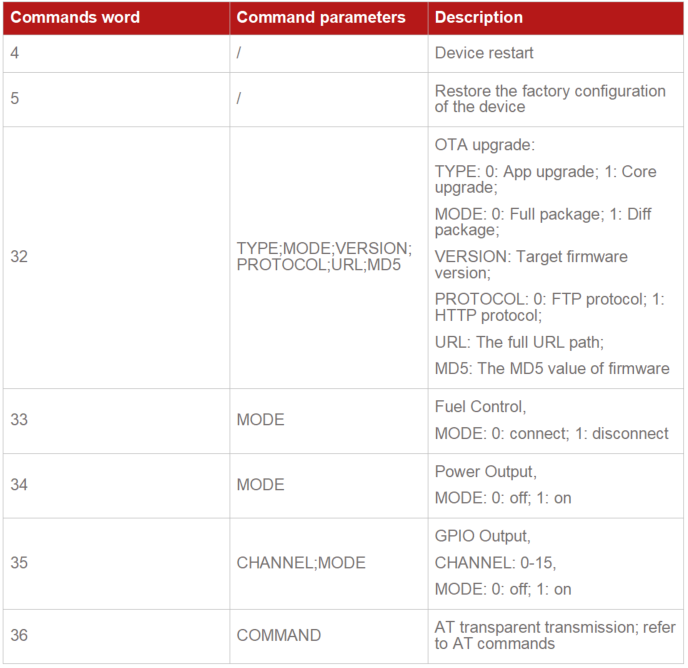

Commands Word Description

11.Location Information Report (0x0200)

Message ID: 0x0200
Location information report message body is made up with location basic information and location additional information item list. Message structure is shown as follows:

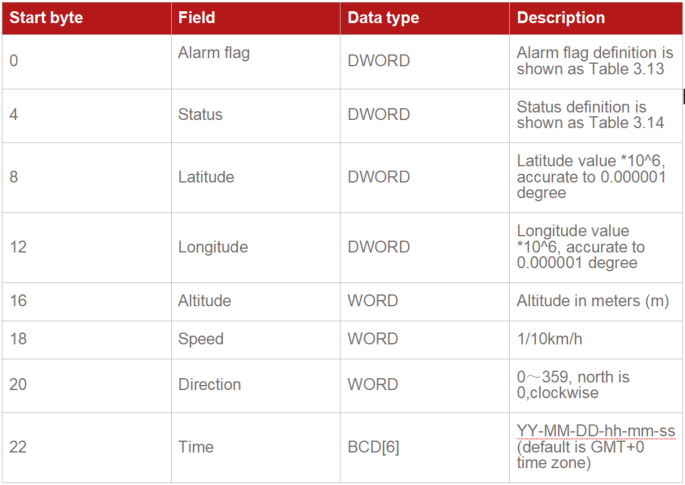

Basic Location Information Data Format

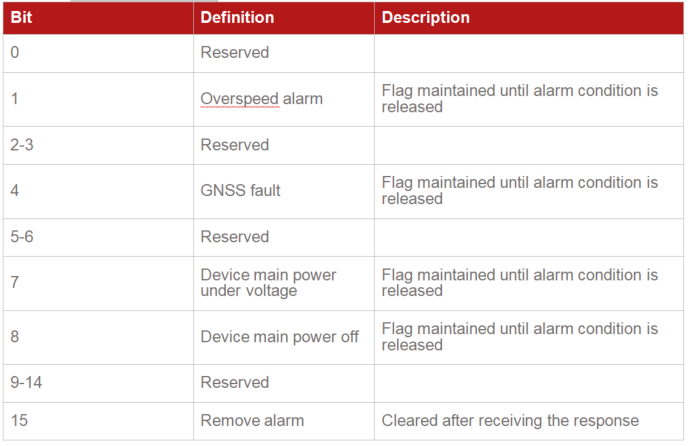

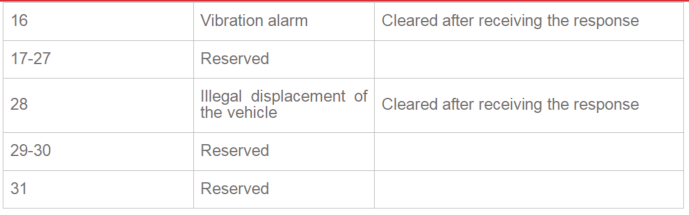

Alarm Flag Definition

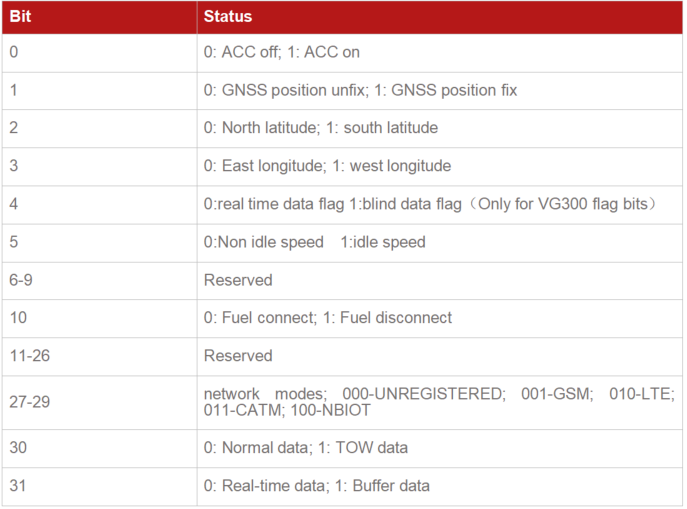

Status Bit Definition

Location Extension Format

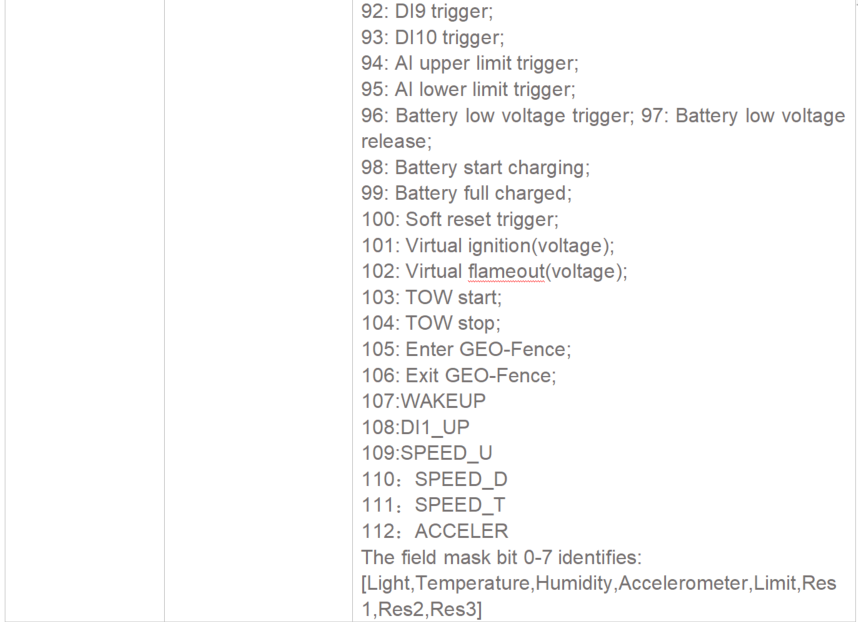

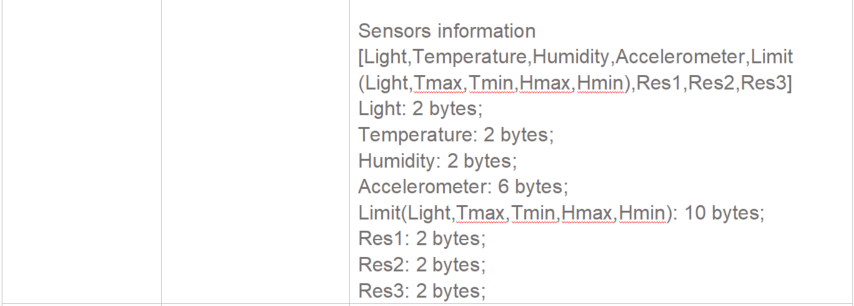

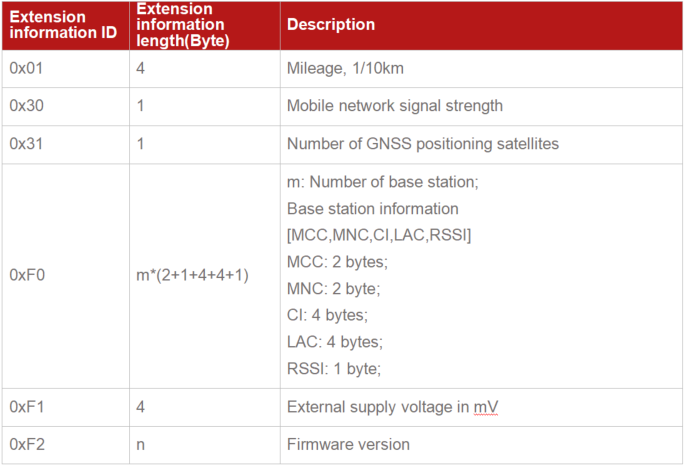

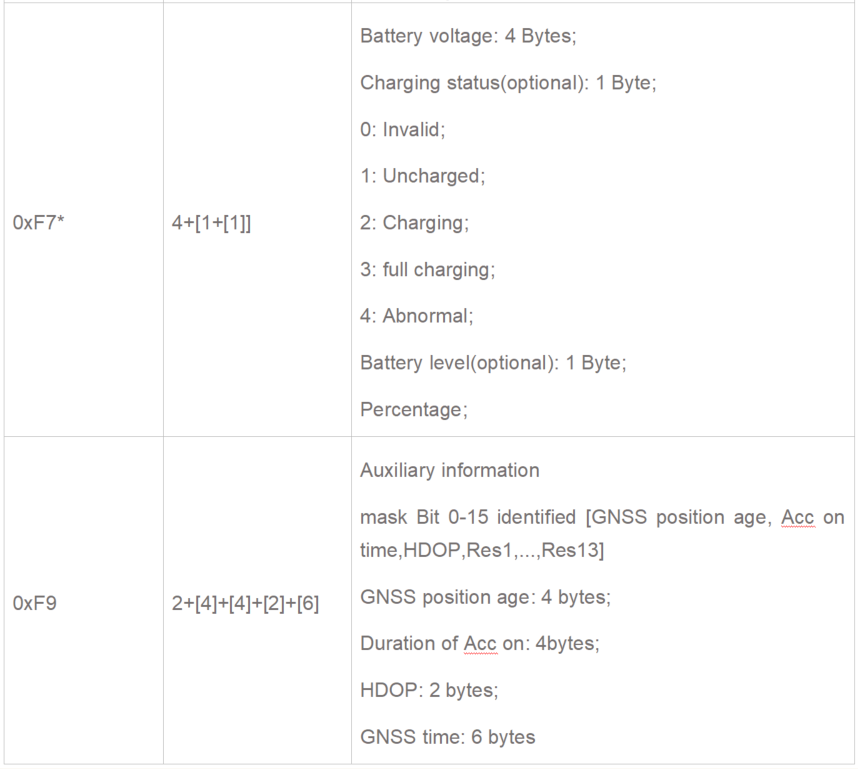

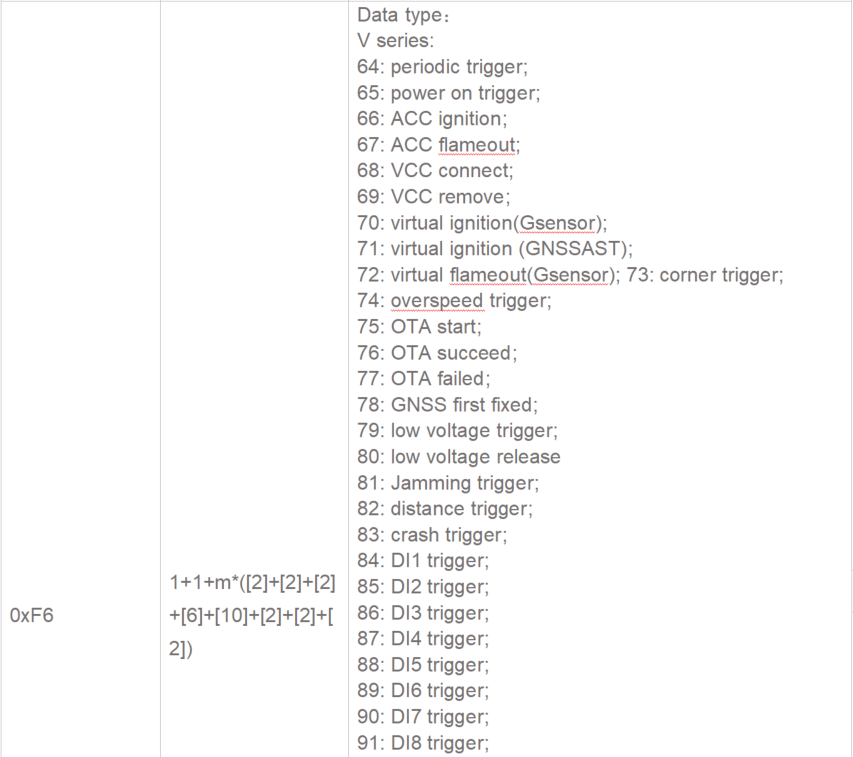

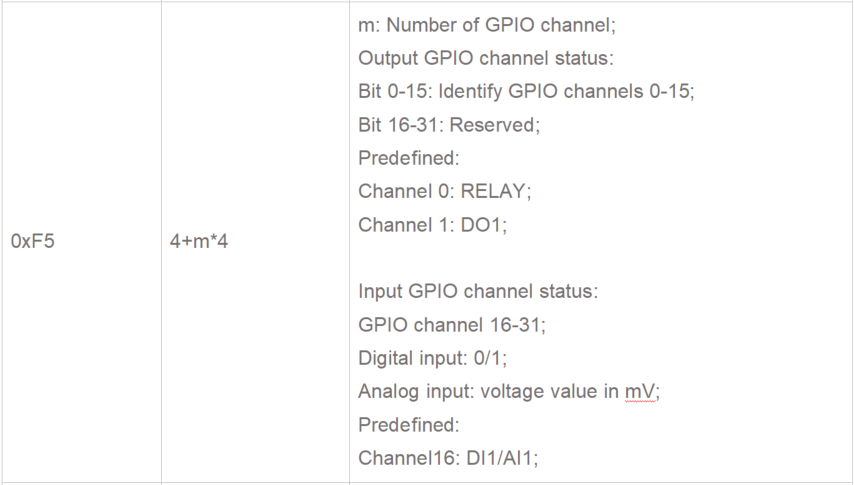

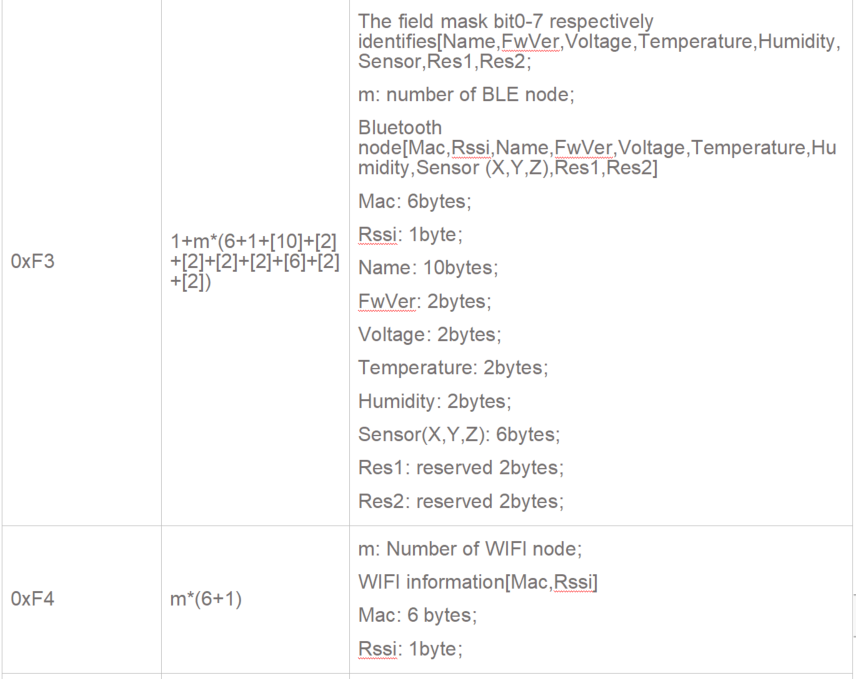

Extension Information Definition

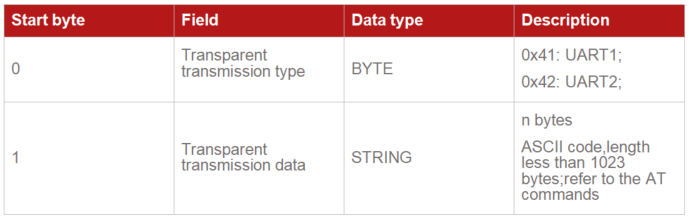

12.Uplink Transparent Transmission (0x0900)

Message ID:0x0900

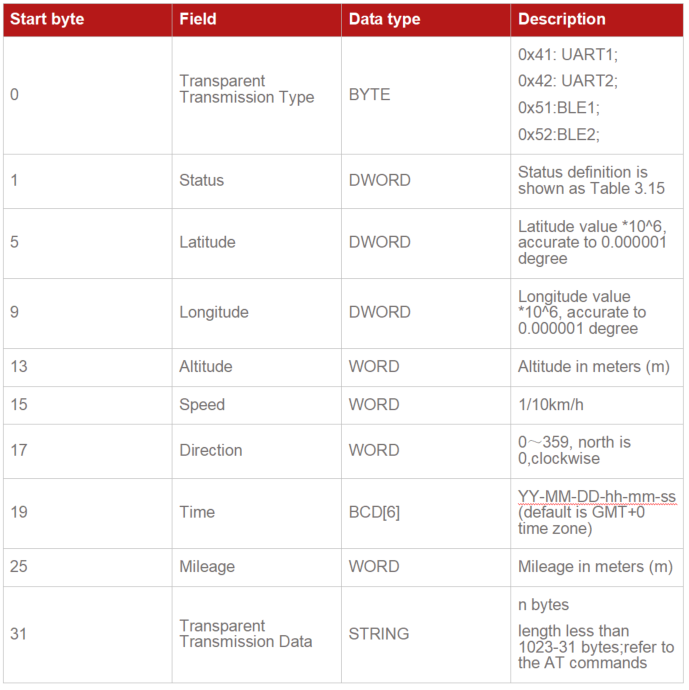

Basic Location Information Data Format

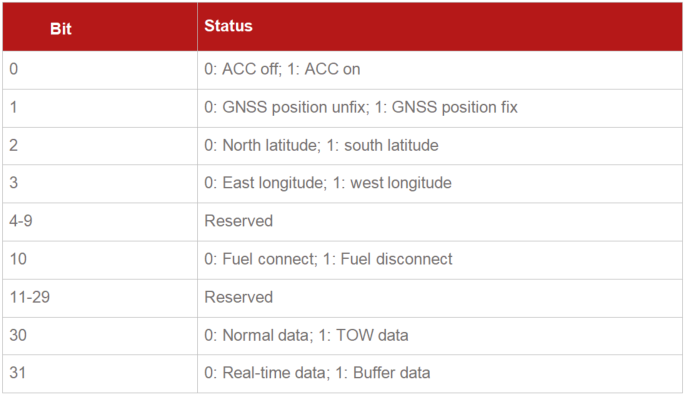

Status Bit Definition

13.Downlink Transparent Transmission (0x8900)

Message ID: 0x8900

#14.Platform RSA public key*(0x8A00)
Message ID: 0x8A00 platform RSA public key * message body is TBD.
