Report data package and heartbeat package

The device will report location information and extension information to platform after authentication completed according to configured report interval. And the device will report the package information when detects trigger events. When the devices enter the sleep mode, it will report the heartbeat package to the platform according to the configured time interval. The time intervals of reporting data package and heartbeat package can be set remotely by the platform.

Note: After registration and authentication, the first data package contains the information of software version, and the subsequent data packages do not contain the information of software version by default. This information can be included in each data package through platform setting.

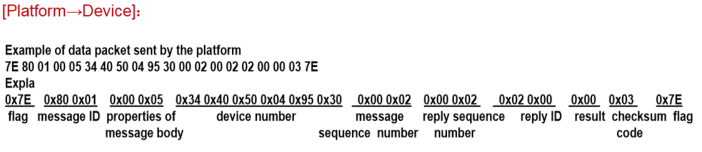

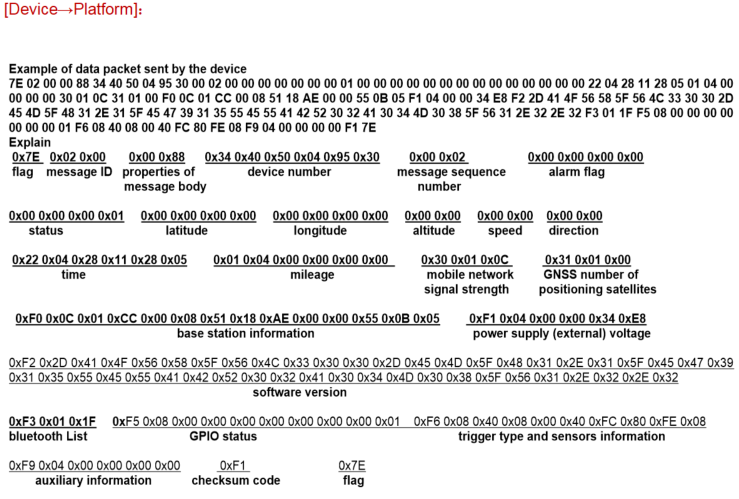

Example of the first reported data package interaction：

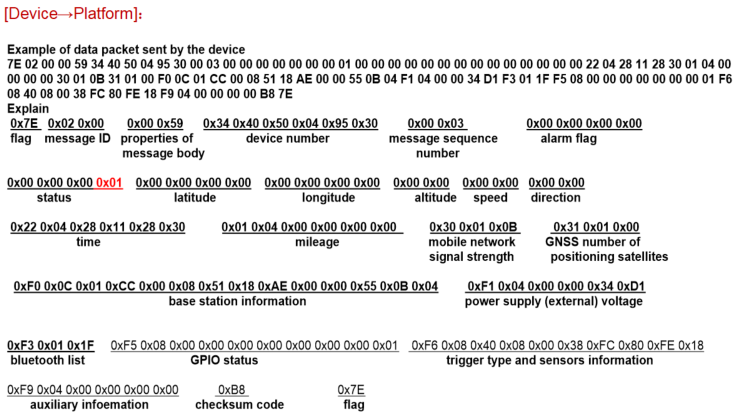

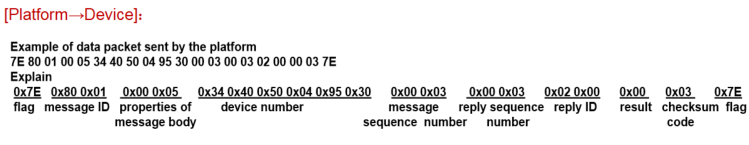

Examples of report package interaction(ACC=ON)：

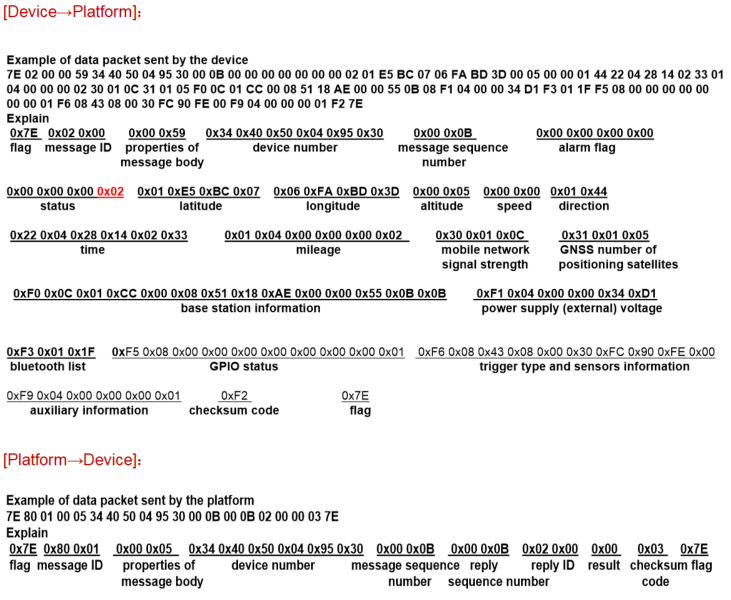

Examples of report package interaction(ACC=OFF):

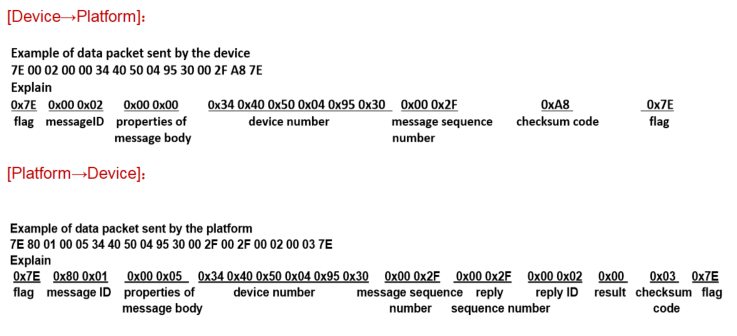

Examples of heartbeat package interaction:

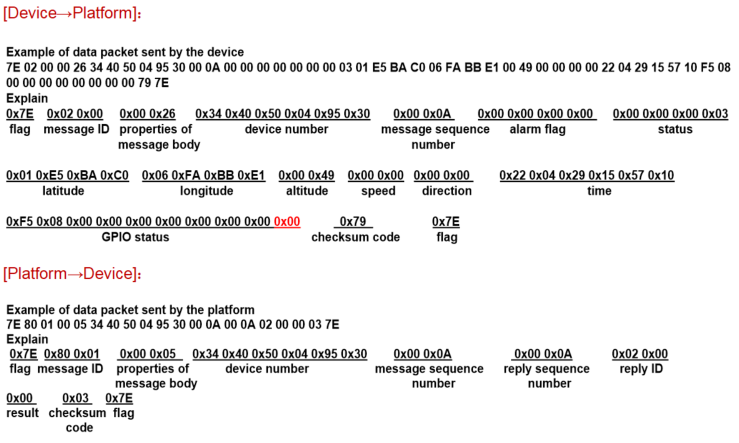

Examples of DI1 interface low level trigger interaction :
