1.Query all devices information

URL https://apollo.aovx.com:1443/terminal/queryAllTerminalInfo
Description Query all devices information
Request mode application/json

2.Request parameters

2.1.Request header

You need to add “token” information in the request header.

If you do not add token information, you will not be able to pass identity authentication authentication.

2.2.Parameters example

No parameters required, all terminal information under this account will be obtained based on the request header token

3.Responses result

3.1.Responses example(Before encryption)

{
    "code": 200,
    "message": "Operation succeeded",
    "data": [
        {
            "terminalId": "0001E9959A7B481DA96EDDDA0FDC86B1",
            "terminalNum": "413052433306",
            "vehicleId": "CD1920FBBF52417EB39D335902FE12BF",
            "vehicleNum": "A-3306",
            "typeId": 103,
            "typeName": "Apollo",
            "protocolType": 808,
            "simNum": "89314404001235546339",
            "iccid": "89314404001235546339",
            "imei": "865413052433306",
            "expireTime": "2025-05-01 00:00:00",
            "createTime": "2023-05-25 06:24:02"
        },
        ....
    ]
}

3.2.Responses description

Properties Type Description
code int result code,Please refer to “Result Code” for details
message String result message
data Object Result object

3.2.1.data description

Properties Type Description
terminalId String Unique identifier of the device assigned by the system
terminalNum String device’s S/N(12 digit numerical value)
vehicleId String Unique identification of the vehicle assigned by the system
vehicleNum String Vehicle number for device installation
typeId int Device classification assigned by the system
typeName String Device Type Name
protocolType int Device Protocol Type ID
simNum String SIM number
iccid String ICCID
imei String IMEI
expireTime String Device expiration time，UTC+0
createTime String Device registration time，UTC+0

4.Postman test

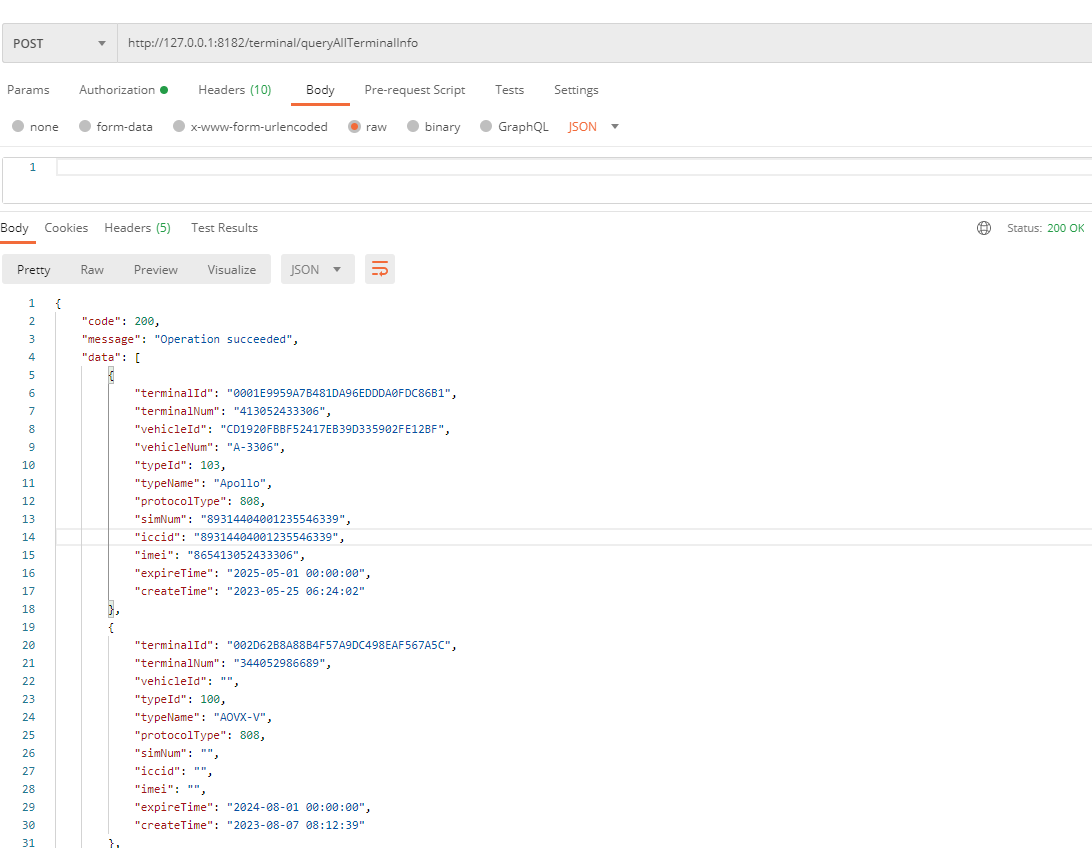

Before encryption:

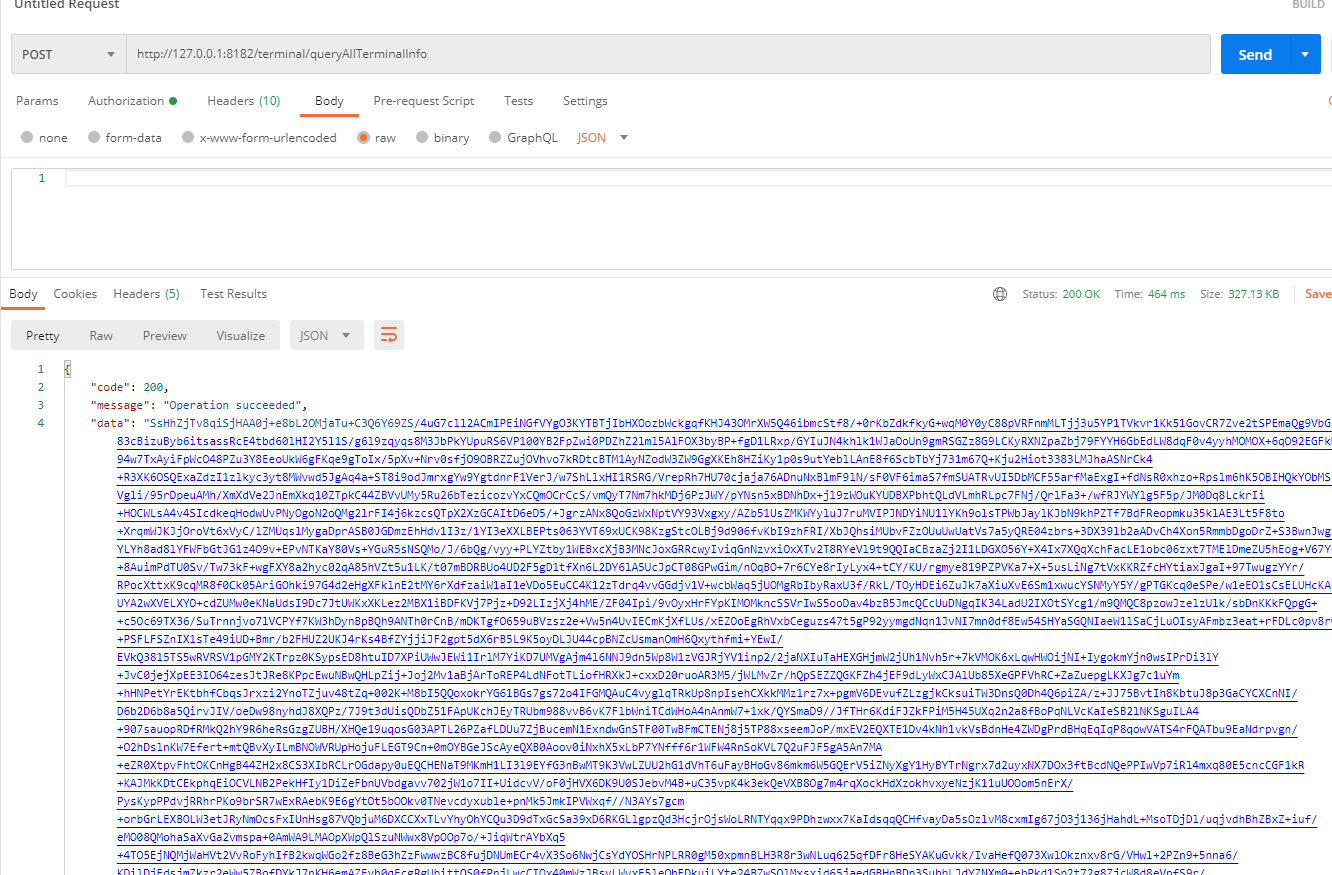

After encryption:
