1.query device last location

URL	https://apollo.aovx.com:1443/apollo/getLastLocationList
Description	Batch query terminal location data through terminal ID collection
Request mode	application/json

2.Request parameters

2.1.Request header

You need to add “token” information in the request header.

If you do not add token information, you will not be able to pass identity authentication authentication.

2.2.Parameters example

["02DFCF4AF7CD412D91BDEA49B028FC80","033DE0D2862C41AD895FD6A721983008","0415B19F4C93457B94DA21ECD8FF5250","05C32AE5B467410687B6D9A29FD27CD0"]

2.3.Parameters description

List<String>set of unique device identifiers in the system

3.Response content

3.1.Response example(Before encryption)

{
    "code": 200,
    "message": "Operation succeeded",
    "data": [
        {
            "terminalId": "30DA0EE226914658BCEA4E6959BC3796",
            "terminalNum": "413050966240",
            "locationType": 1,
            "lat": 45.379553,
            "lon": -73.517405,
            "speed": 4.0,
            "direction": 296,
            "mileage": 481.0,
            "lbsCells": "302,220,11656,31243561,0",
            "gnssTime": "2023-05-11T06:34:22Z",
            "recvTime": "2023-05-11T06:34:42.221732Z",
            "voltage": 54700,
            "battery": 69,
            "totalCapacity": 26396,
            "remainCapacity": 18156,
            "dischargeCount": 10,
            "powered":1,
            "faultStatus": {
                "Disconnection": 0,
                "Motor_High_Temp": 0,
                "Overcurrent": 0,
                "Hall": 0,
                "Controller": 0,
                "Ele_Regulate_High_Temp": 0
            },
            "modeStatus": {
                "MCU_Speed_Limit": 16,
                "Anti_Theft": 0,
                "Battery_Lock": 0
            },
            "wifiList": [
                {
                    "rssi": -70,
                    "mac": "fa:8f:ca:5c:b8:b0"
                },
                {
                    "rssi": -72,
                    "mac": "6a:ad:a6:c5:b8:dd"
                },
                {
                    "rssi": -72,
                    "mac": "00:5f:67:17:20:2a"
                },
                {
                    "rssi": -73,
                    "mac": "06:a0:6e:5e:aa:4d"
                }
            ],
            "accelerometer":"x:192,y:-88,z:-968"
        }
    ]
}

3.2.Response description

Field	Data type	description
code	int	Return code
message	String	Return message
data	object	Response data

3.2.1.Response data description

Properties	Type	Description
terminalId	String	terminal Id
terminalNum	String	terminal Number
locationType	Integer	Positioning type,0:Not Positioning;1:GNSS;2:LBS;3:Positioning retention;4:WIFI
lat	Double	latitude(WGS-84)
lon	Double	longitude(WGS-84)
speed	Double	speed,unit: km/h
direction	Integer	direction,0~360,0:north
mileage	Double	mileage，unit: km
lbsCells	String	Communication base station code (format: mcc,mnc,lac,ci,rssi)
gnssTime	String	Satellite time (UTC)
recvTime	String	Data receiving time of gateway(UTC)
gsmValue	Integer	GMS signal value (range：0~31,31 is max,0 is no signal)
gnssValue	Integer	GNSS signal value （range: 0~30,It will be related to the local satellite distribution, and generally 5 satellites can complete accurate positioning）
battery	Integer	battery,unit: %
voltage	Double	voltage,unit: v
totalCapacity	Integer	Battery capacity,unit:mAh
remainCapacity	Integer	Remain battery capacity,unit:mAh
dischargeCount	Integer	Battery discharge count
powered	Integer	0:Built in battery powered;1:External power supply;-1:Unknown, device data has not been updated after adding status
faultStatus	Map<String,Object>	such as: “faultStatus”: {“Disconnection”: 0, “Motor_High_Temp”: 0,”Overcurrent”: 0,”Hall”: 1,”Controller”: 0,”Ele_Regulate_High_Temp”: 0}
modeStatus	Map<String,Object>	such as:”modeStatus”: {“MCU_Speed_Limit”: 1,”Anti_Theft”: 0,”Battery_Lock”: 0}
wifiList	`List<Map<String,Object>>`	`such as:"wifiList": [{"rssi": -50,"mac": "f0:16:28:13:45:da"},{"rssi": -50,"mac": "94:77:2b:6b:b9:e0"},{"rssi": -50,"mac": "d4:da:21:08:08:e2"},{"rssi": -50,"mac": "22:40:4d:1d:88:a1"},{"rssi": -50,"mac": "22:40:4d:1d:88:af"}]`
accelerometer	String	accelerometer(such as x:192,y:-88,z:-968)

faultStatus

Properties	Type	Description
Overcurrent	int	Current fault:1:yes;0:No
Hall	int	Motor hall fault: 1:yes;0:No
Controller	int	Controller fault : 1:yes;0:No
Ele_Regulate_High_Temp	int	High temperature fault of electric regulator : 1:yes;0:No
Motor_High_Temp	int	Motor high temperature fault: 1:yes;0:No
Disconnection	int	Communication disconnection: 1:yes;0:No

modeStatus

Properties	Type	Description
MCU_Speed_Limit	int	Speed limit:unit:km/h
Anti_Theft	int	Anti-theft status: 1: armed; 0：cancel
Battery_Lock	int	Battery lock status : 1:unlock;0:lock
kill_status	int	Permanently locking the scooter; 1:on;0:off
switch_status	int	Scooter switch status; 1:on;0:off

wifiList

Properties	Type	Description
rssi	int	rssi
mac	String	wifi mac

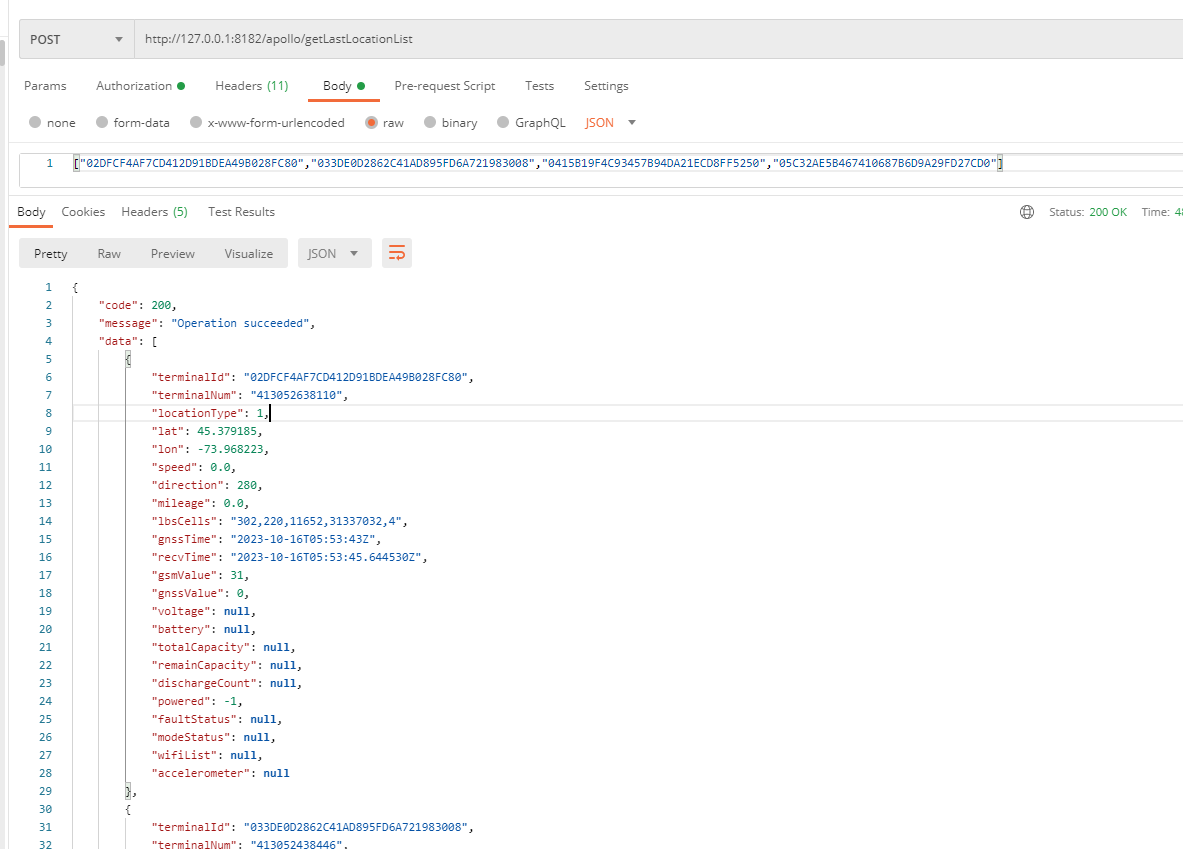

4.Postman Request

Before encryption:

After encryption:
