查询用户配置的围栏列表

1.用途

查看设备状态数据的时候设备的基础信息
采用Post方式，请求参数为JSON格式

2.URL

http://124.223.60.234:8181/spartan/fence/queryUserFence

3.请求参数

3.1.参数示例

{
    "userId":"21"
}

3.2.参数说明

4.返回参数

4.1.返回参数示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": [
        {
            "fenceId": "CD80BB2D7D4740688C7FBA80FEE78222",
            "fenceName": "fence2",
            "fenceColor": "rgba(53, 106, 195, 0.8)",
            "formType": 2,
            "centerLat": 15.643266,
            "centerLon": -91.985222,
            "radius": 3,
            "path": "",
            "address": "terminal de buses la mesilla, Carretera Panamericana, La Mesilla, La Democracia, Huehuetenango, Guatemala",
            "terminalCount": 0,
            "userId": "21"
        },
        {
            "fenceId": "DE090D3862024D8B921DA4F0612115F8",
            "fenceName": "fence1",
            "fenceColor": "rgba(53, 106, 195, 0.8)",
            "formType": 2,
            "centerLat": 15.643266,
            "centerLon": -91.985222,
            "radius": 3,
            "path": "",
            "address": "terminal de buses la mesilla, Carretera Panamericana, La Mesilla, La Democracia, Huehuetenango, Guatemala",
            "terminalCount": 0,
            "userId": "21"
        }
    ]
}

4.2.返回参数说明

data说明

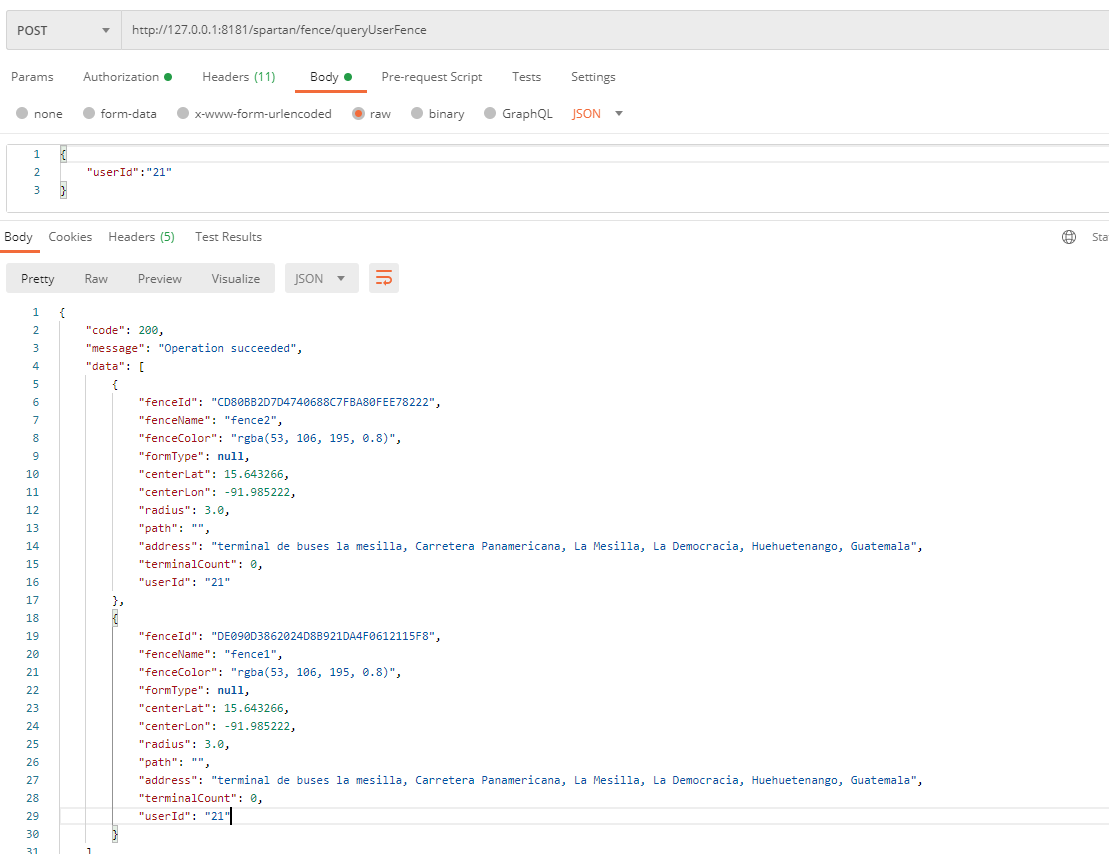

5.测试示例
