查询所有Sensor的列表

1.用途

采用Post方式，请求参数为JSON格式

2.URL

http://124.223.60.234:8181/spartan/deviceconfig/querySensorItem

3.请求参数

3.1.参数示例

无需更多参数，查询系统定义的Motion Sensor的列表

4.返回参数

4.1.返回参数示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": {
        "motionSensorItems": [
            {
                "id": 1,
                "name": "Off",
                "value": 0
            },
            {
                "id": 2,
                "name": "Low",
                "value": 30
            },
            {
                "id": 3,
                "name": "Medium",
                "value": 120
            },
            {
                "id": 4,
                "name": "High",
                "value": 255
            }
        ],
        "lightSensorItems": [
            {
                "id": 1,
                "name": "Off",
                "value": 0
            },
            {
                "id": 2,
                "name": "Low",
                "value": 200
            },
            {
                "id": 3,
                "name": "Medium",
                "value": 500
            },
            {
                "id": 4,
                "name": "High",
                "value": 1000
            }
        ],
        "tempSensorItems": [
            {
                "id": 1,
                "name": "Off",
                "value": "0|0,0|0"
            },
            {
                "id": 2,
                "name": "Cold",
                "value": "-5|5,40|60"
            },
            {
                "id": 3,
                "name": "Room Temp./Humid.",
                "value": "20|35,70|90"
            },
            {
                "id": 4,
                "name": "Hot",
                "value": "45|65,40|60"
            }
        ]
    }
}

4.2.返回参数说明

motionSensorItems(Motion Sensor的列表) 说明

lightSensorItems(Light Sensor的列表) 说明

tempSensorItems(Temp & Humidity Sensor的列表) 说明

value的格式
min temp|max temp,min humidity|max humidity

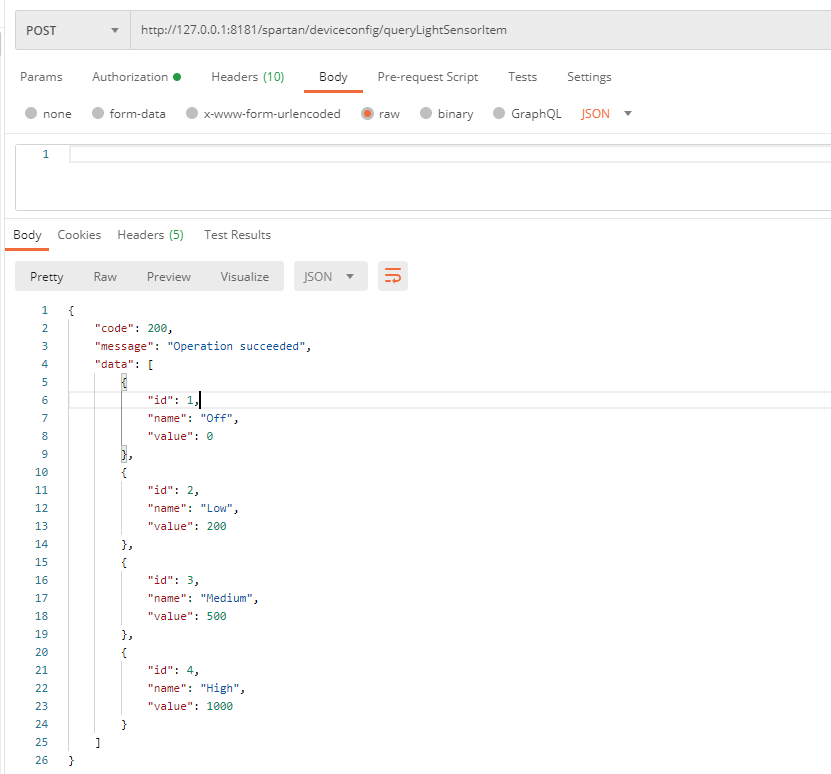

5.测试示例
