说明

AT指令列表需要支持搜索

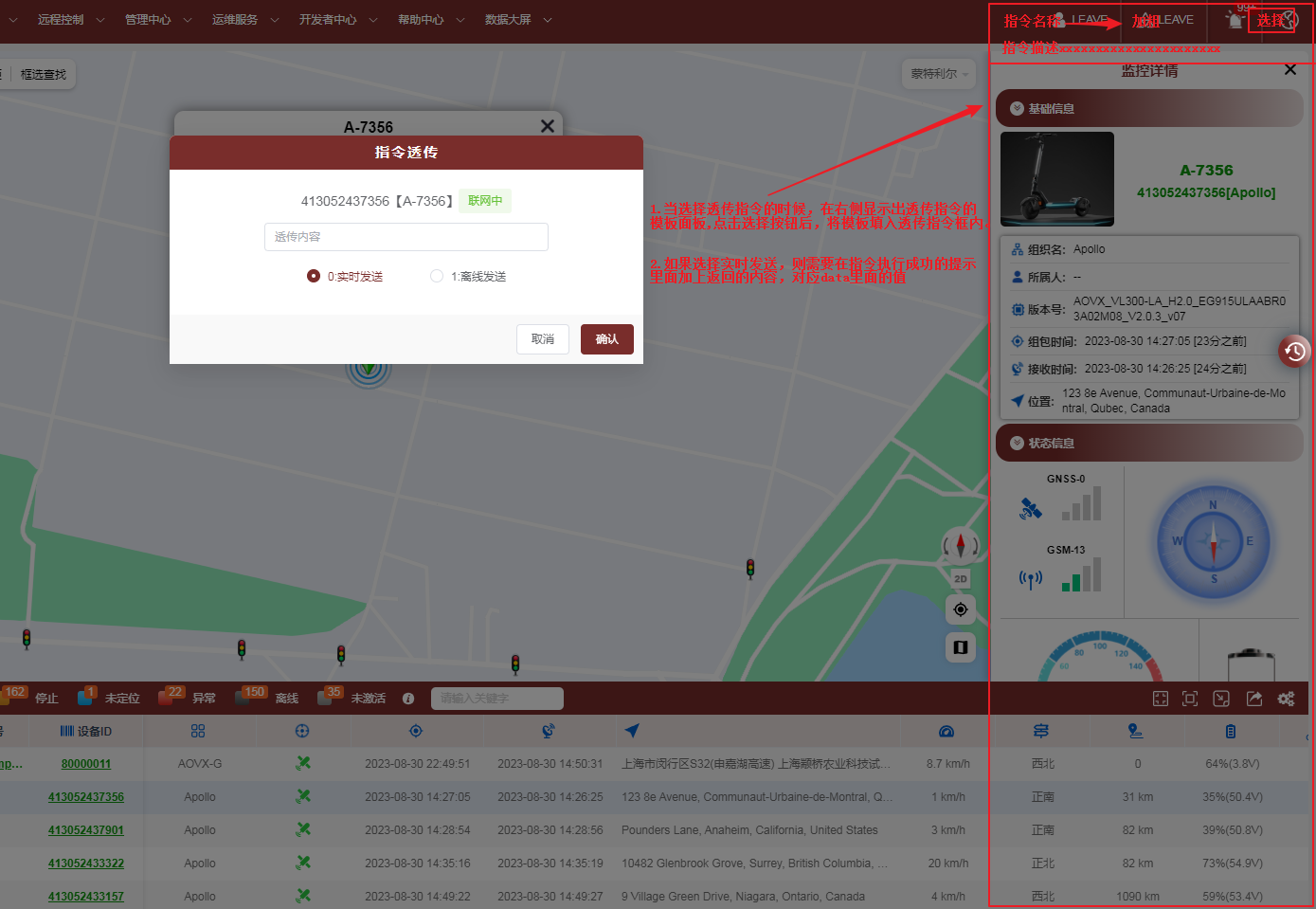

只有设备有AT指令列表才显示出右侧的快捷面板

1.URL

http://124.223.60.234:8080/system/asset/command/queryTerminalTypeATCommandList

2.请求参数

2.1请求头

在Headers里面增加token:对应登录验证成功后，data里面对应的tokenId

2.2.参数示例

{
    "terminalTypeId":100
}

2.3.参数说明

3.接口应答

3.1.返回示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": [
        {
            "terminalTypeId": 100,
            "sortId": 1,
            "atCommand": "AT+RESET",
            "desc": "{\"0\":\"Device reset\",\"1\":\"设备重启\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 2,
            "atCommand": "AT+LOG=<level>",
            "desc": "{\"0\":\"Setting device log leave.(0:Close all;1:Open all;2:Open section)\",\"1\":\"设置设备log等级(0:关闭所有;1:开启所有;2:开启部分)\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 3,
            "atCommand": "AT+LOG?",
            "desc": "{\"0\":\"Query device log leave\",\"1\":\"查询设备log等级\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 4,
            "atCommand": "AT+FORMAT=<index>",
            "desc": "{\"0\":\"Restore factory configuration.(0:Restore all default;1:Only retains the S/N,other restore default;2:Retains the S/N,main IP,mileage,APN,other restore default;3:Restore to factory configuration)\",\"1\":\"恢复出厂配置(0:全部恢复到默认值;1:仅保留设备S/N，其他恢复到默认值;2:保留主IP,设备S/N，里程和APN，其他恢复默认配置;3:恢复到出厂配置)\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 5,
            "atCommand": "AT+ATREPORT",
            "desc": "{\"0\":\"Force packing\",\"1\":\"强制组包\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 6,
            "atCommand": "AT+QTV?",
            "desc": "{\"0\":\"Query fw version\",\"1\":\"查询版本号\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 7,
            "atCommand": "AT+QINFO?",
            "desc": "{\"0\":\"Query device information\",\"1\":\"查询终端信息\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 8,
            "atCommand": "AT+QIMEI?",
            "desc": "{\"0\":\"Query device IMEI\",\"1\":\"查询终端IMEI\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 9,
            "atCommand": "AT+QICCID?",
            "desc": "{\"0\":\"Query device ICCID\",\"1\":\"查询终端ICCID\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 10,
            "atCommand": "AT+QBS?",
            "desc": "{\"0\":\"Query device main base station information\",\"1\":\"查询终端主基站信息\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 11,
            "atCommand": "AT+QBAT?",
            "desc": "{\"0\":\"Query the charging status of the built-in small battery\",\"1\":\"查询内置小电池充电状态\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 12,
            "atCommand": "AT+QTIME?",
            "desc": "{\"0\":\"Query date time\",\"1\":\"查询日期时间\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 13,
            "atCommand": "AT+GNSS?",
            "desc": "{\"0\":\"Query GNSS state\",\"1\":\"查询 GNSS 状态\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 14,
            "atCommand": "AT+QADC?",
            "desc": "{\"0\":\"Query external power supply voltage\",\"1\":\"查询外接电源电压\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 15,
            "atCommand": "AT+BLIND=0",
            "desc": "{\"0\":\"Clear buffer\",\"1\":\"清除缓冲区数据\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 16,
            "atCommand": "AT+BLIND?",
            "desc": "{\"0\":\"Query buffer data\",\"1\":\"查询缓冲区数据\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 17,
            "atCommand": "AT+QGSENSOR?",
            "desc": "{\"0\":\"Query sensor status\",\"1\":\"查询传感器状态\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 18,
            "atCommand": "AT+QACC?",
            "desc": "{\"0\":\"Query ACC status\",\"1\":\"查询ACC状态\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 19,
            "atCommand": "AT+QDCIN?",
            "desc": "{\"0\":\"Query VCC status\",\"1\":\"查询 VCC 状态\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 20,
            "atCommand": "AT+ID?",
            "desc": "{\"0\":\"Query device S/N\",\"1\":\"查询设备S/N\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 21,
            "atCommand": "AT+BTMAC?",
            "desc": "{\"0\":\"Query the MAC address of the device\",\"1\":\"查询设备MAC地址\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 22,
            "atCommand": "AT+IP=<index>,<ip>,<port>",
            "desc": "{\"0\":\"Setting IP and port(index:0:main server;1:backup server;2:manager server)\",\"1\":\"设置设备的服务器IP与端口(其中:index:0:主服务;1:备用服务器;2:管理服务器)\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 23,
            "atCommand": "AT+IP?",
            "desc": "{\"0\":\"Query device ip and port\",\"1\":\"查询设备的服务器IP与端口\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 24,
            "atCommand": "AT+TIMEGAP=<index>,<time>",
            "desc": "{\"0\":\"Setting reporting interval(index:(0:driving mode reporting interval;1:Sleep mode reporting interval;2:Sleep mode heartbeat interval;3:Management Service Heartbeat Interval;4:Parking time);time:0 driving mode reporting interval\r\n1 Sleep mode reporting interval\r\n2 Sleep mode heartbeat interval\r\n3 Management Service Heartbeat Interval\r\n4 Parking time\r\nTime interval, in seconds.)\",\"1\":\"配置上报间隔(index:(0:行驶模式上报间隔;1:睡眠模式上报间隔;2:睡眠模式心跳间隔;3:管理服务心跳间隔:4:停车时间);time:时间间隔,单位秒)\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 25,
            "atCommand": "AT+TIMEGAP?",
            "desc": "{\"0\":\"Query reporting interval\",\"1\":\"查询设备的上报间隔\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 26,
            "atCommand": "AT+SHAKE=<count>,<time>, <timegap>",
            "desc": "{\"0\":\"Setting vibration level\",\"1\":\"配置震动等级\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 27,
            "atCommand": "AT+SHAKE?",
            "desc": "{\"0\":\"Query vibration level\",\"1\":\"查询震动等级\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 28,
            "atCommand": "AT+SHAKETIME=<time1>,<ti\r\nme2>",
            "desc": "{\"0\":\"Setting vibration time\",\"1\":\"配置震动时间阈值\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 29,
            "atCommand": "AT+SHAKETIME?",
            "desc": "{\"0\":\"Query vibration time\",\"1\":\"查询震动时间阈值\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 30,
            "atCommand": "AT+APN=<apn>,<name>,<password>",
            "desc": "{\"0\":\"Setting APN\",\"1\":\"设置APN\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 31,
            "atCommand": "AT+APN?",
            "desc": "{\"0\":\"Query APN\",\"1\":\"查询APN\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 32,
            "atCommand": "AT+TIMEZONE=<timezone>",
            "desc": "{\"0\":\"Setting timezone\",\"1\":\"设置时差\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 33,
            "atCommand": "AT+TIMEZONE?",
            "desc": "{\"0\":\"Query timezone\",\"1\":\"查询时差\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 34,
            "atCommand": "AT+MILEAGE=<mile>",
            "desc": "{\"0\":\"Setting initial mileage\",\"1\":\"配置初始里程\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 35,
            "atCommand": "AT+MILEAGE?",
            "desc": "{\"0\":\"Query mileage\",\"1\":\"查询设备当前里程\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 36,
            "atCommand": "AT+FOTA=<type>,<version>,<url>",
            "desc": "{\"0\":\"Device FOTA\",\"1\":\"设备FOTA升级\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 37,
            "atCommand": "AT+SHAKERANGE=<enable>, <range>,<shakelevel>",
            "desc": "{\"0\":\"Setting Gsensor threshold\",\"1\":\"设置G-Sensor阈值\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 38,
            "atCommand": "AT+SHAKERANGE?",
            "desc": "{\"0\":\"Query Gsensor threshold\",\"1\":\"查询G-Sensor阈值\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 39,
            "atCommand": "AT+WIFIENABLE=<enable>",
            "desc": "{\"0\":\"Setting WIFI enable(enable:0:disable;1:enable)\",\"1\":\"设置WIFI是否启用(enable:0:禁用；1:启用)\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 40,
            "atCommand": "AT+WIFIENABLE?",
            "desc": "{\"0\":\"Query WIFI enable\",\"1\":\"查询WIFI是否启用\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 41,
            "atCommand": "AT+BTENABLE=<enable>",
            "desc": "{\"0\":\"Setting BT enable(enable:0:disable;1:enable)\",\"1\":\"设置蓝牙是否启用(enable:0:禁用；1:启用)\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 42,
            "atCommand": "AT+BTENABLE?",
            "desc": "{\"0\":\"Query BT enable\",\"1\":\"查询蓝牙是否启用\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 43,
            "atCommand": "AT+REPORTMASK=<mask>",
            "desc": "{\"0\":\"Setting 0x0200 reporting mask\",\"1\":\"设置0x0200上报的掩码\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 44,
            "atCommand": "AT+REPORTMASK?",
            "desc": "{\"0\":\"Query 0x0200 reporting mask\",\"1\":\"查询0x0200上报的掩码\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 45,
            "atCommand": "AT+SENSORMASK=<mask>",
            "desc": "{\"0\":\"Setting 0x0200 sensor mask\",\"1\":\"设置0x0200传感器掩码\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 46,
            "atCommand": "AT+SENSORMASK?",
            "desc": "{\"0\":\"Query 0x0200 sensor mask\",\"1\":\"查询0x0200传感器掩码\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 46,
            "atCommand": null,
            "desc": null
        },
        {
            "terminalTypeId": 100,
            "sortId": 47,
            "atCommand": "AT+CRASHRANGE=<crashrange>",
            "desc": "{\"0\":\"Setting crash range\",\"1\":\"设置碰撞等级\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 48,
            "atCommand": "AT+CRASHRANGE?",
            "desc": "{\"0\":\"Query crash range\",\"1\":\"查询碰撞等级\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 49,
            "atCommand": "AT+VOLTAGE=<index>,<voltage>",
            "desc": "{\"0\":\"Setting voltage threshold\",\"1\":\"配置电压阈值\"}"
        },
        {
            "terminalTypeId": 100,
            "sortId": 50,
            "atCommand": "AT+VOLTAGE?",
            "desc": "{\"0\":\"Query voltage threshold\",\"1\":\"查询电压阈值\"}"
        }
    ]
}

3.2.返回结果说明

data 详情
