1.URL

http://124.223.60.234:8080/system/asset/location/queryTerminalLocationDetails

2.请求参数

2.1请求头

在Headers里面增加token:对应登录验证成功后，data里面对应的tokenId

2.2.参数示例

{
    "id":"8B60985EA2314D8D944C4B5C9044782C"
}

2.3.参数说明

3.接口应答

3.1.返回示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": {
        "location": {
            "tid": "8B60985EA2314D8D944C4B5C9044782C",
            "locType": 2,
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "speed": 0.0,
            "dir": 0,
            "mil": 0.0,
            "lbs": "460,0,21771,27757,-75",
            "gtime": "2025-06-08 08:54:55",
            "rtime": "2025-06-08 08:55:15",
            "gsm": 19,
            "gnss": 0,
            "alarms": [],
            "batMap": {
                "vol": "3.593",
                "charge": "0",
                "bat": "98"
            },
            "statusMap": {
                "awaken": 0,
                "type": 0,
                "network": 4
            },
            "expandMap": {
                "hum": "70.0",
                "temp": "28.2",
                "light_lim": "1500",
                "hum_min": "10",
                "awaken": "0",
                "temp_max": "40.0",
                "vibration": "1028.17",
                "work_mod": "4",
                "accel": "x:-66,y:-10,z:1026",
                "msgFlowId": "2980",
                "temp_min": "0.0",
                "auxiliary": "{\"gnss_time\":\"000000000000\",\"acc_duration\":0,\"position_age\":0,\"hdop\":0}",
                "hum_max": "50"
            },
            "wifi": "",
            "ble": "",
            "device":"{\"iccid\":\"89457300000026000029\",\"imei\":\"0866088079146120\",\"device_type\":\"GM110-GL\",\"work_model\":4}"
        },
        "onlineStatus": 0,
        "alarmCount": 0,
        "terminalTypeCustom": {
            "terminalTypeId": 101,
            "typeName": "AOVX-G",
            "offlineTime": 86400,
            "modelId": 2,
            "protocolType": 808,
            "status": 1,
            "functionKeys": "[3,4,15,16]",
            "terminalTypeFuncList": [
                {
                    "functionKey": 3,
                    "name": "{\"0\":\"Restart\",\"1\":\"远程重启\",\"2\":\"Reinicio\",\"3\":\"إعادة تشغيل\"}"
                },
                {
                    "functionKey": 4,
                    "name": "{\"0\":\"AT Command\",\"1\":\"指令透传\",\"2\":\"Orden AT\",\"3\":\"أترحيل الأوامر\"}"
                },
                {
                    "functionKey": 15,
                    "name": "{\"0\":\"Mask command\",\"1\":\"掩码指令\",\"2\":\"Mascarilla\",\"3\":\"أمر المسخرة\"}"
                },
                {
                    "functionKey": 16,
                    "name": "{\"0\":\"Share\",\"1\":\"分享\",\"2\":\"Compartir\",\"3\":\"مشاركة\"}"
                }
            ],
            "gateway": "124.223.60.234:6608",
            "descUrl": null
        }
    }
}

3.2.返回结果说明

data详情

location 详情

batMap说明

电池信息，并非返回全部内容，可根据返回字段动态显示
显示样式如：电量(电压)(充电中)；如果字段没有或者无效则不显示此内容，比如只有电量则显示样式：电量

statusMap说明

根据终端类型而显示：

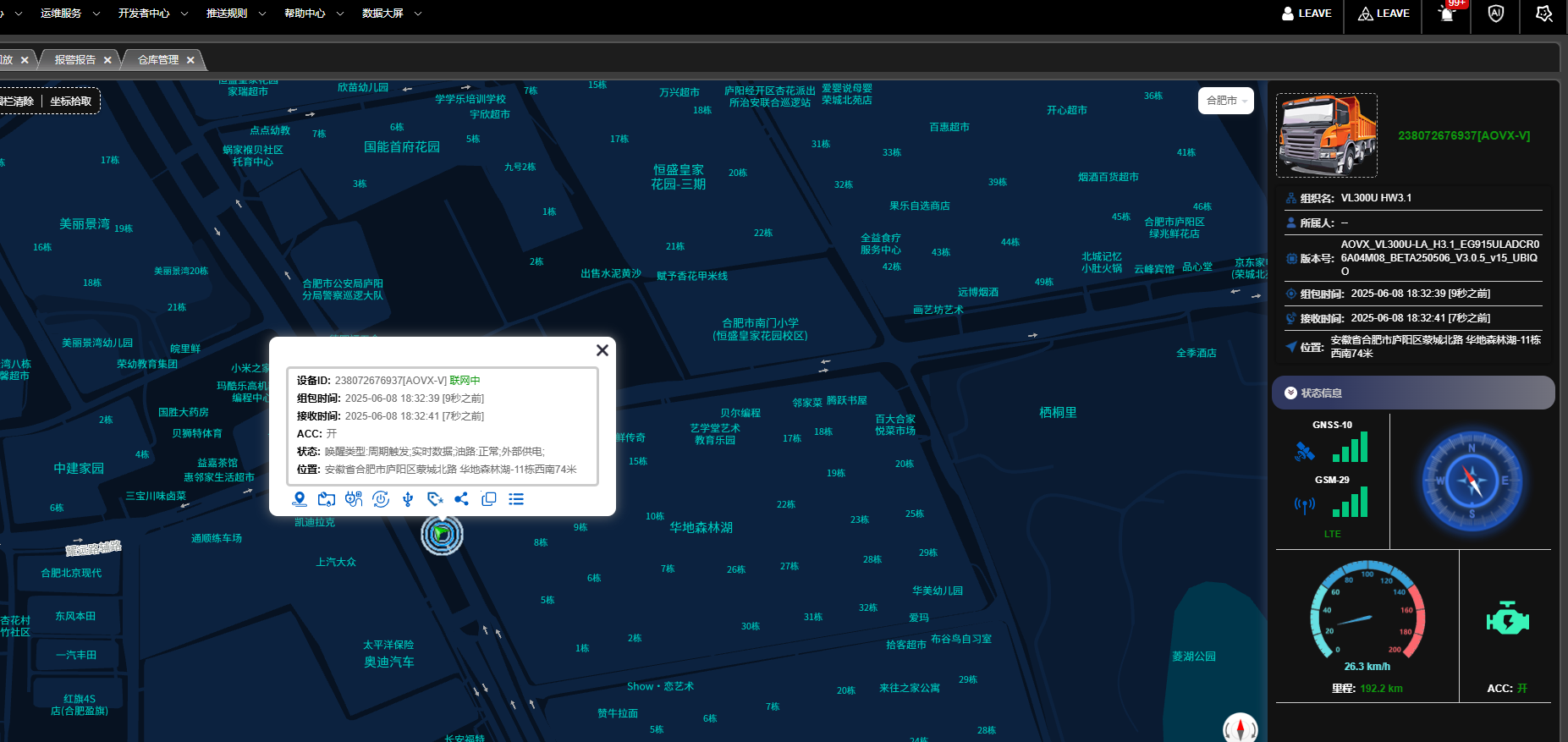

modelId=1（车机）:acc:ACC状态;door:车门状态；oil:油路状态；ele:电源状态；type:数据类型:(0:实时；1:补传；2:报警)

model=2,3(货物追踪器)：type:数据类型:(0:实时；1:补传；2:报警)；

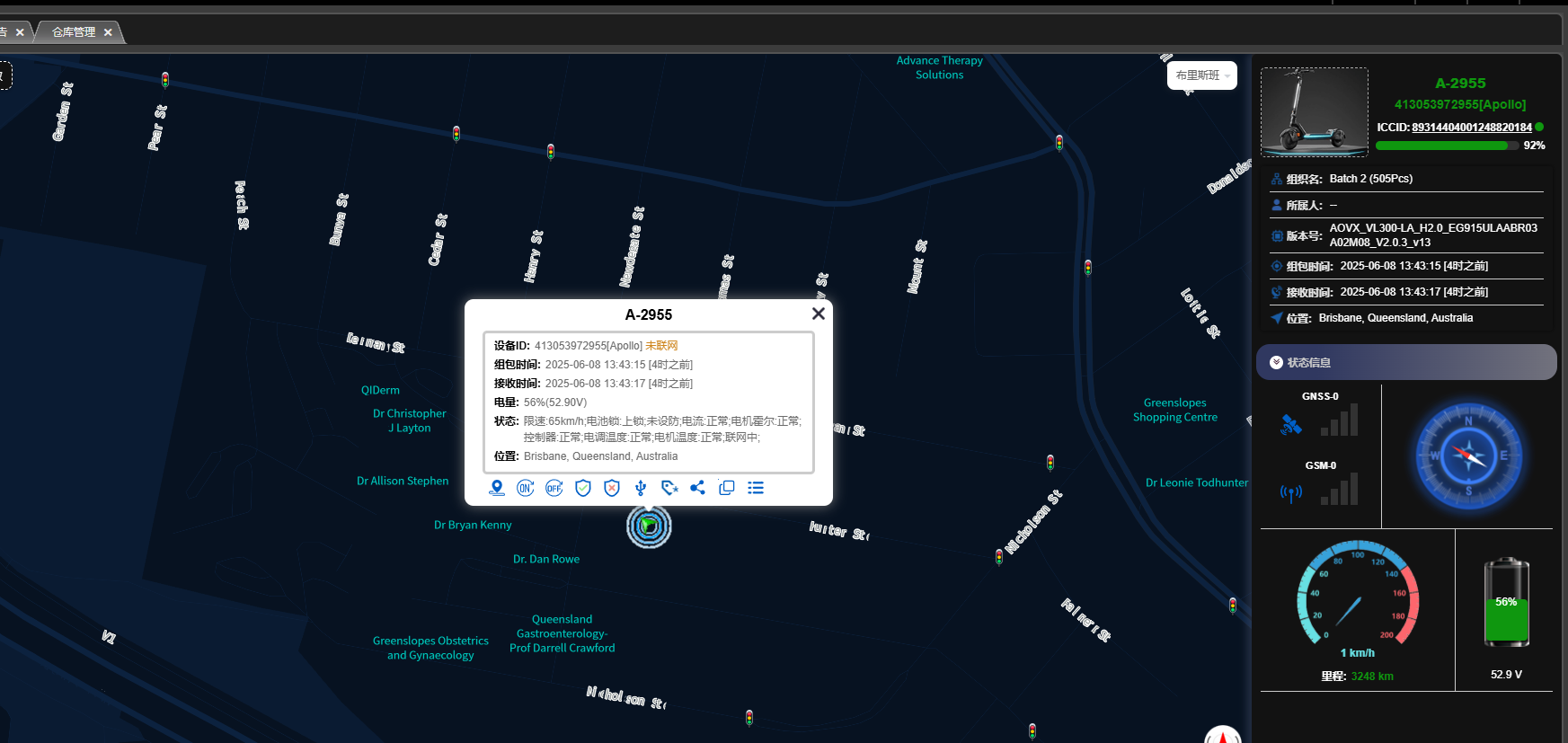

model=4(电动踏板车)：MCU_Speed_Limit:限速;Battery_Lock:电池锁;Anti_Theft:设防状态;Overcurrent:电流状态；Hall：电机霍尔状态；Controller：控制器状态；Ele_Regulate_High_Temp：电调温度状态；Motor_High_Temp：电机温度状态；Disconnection：联网状态；

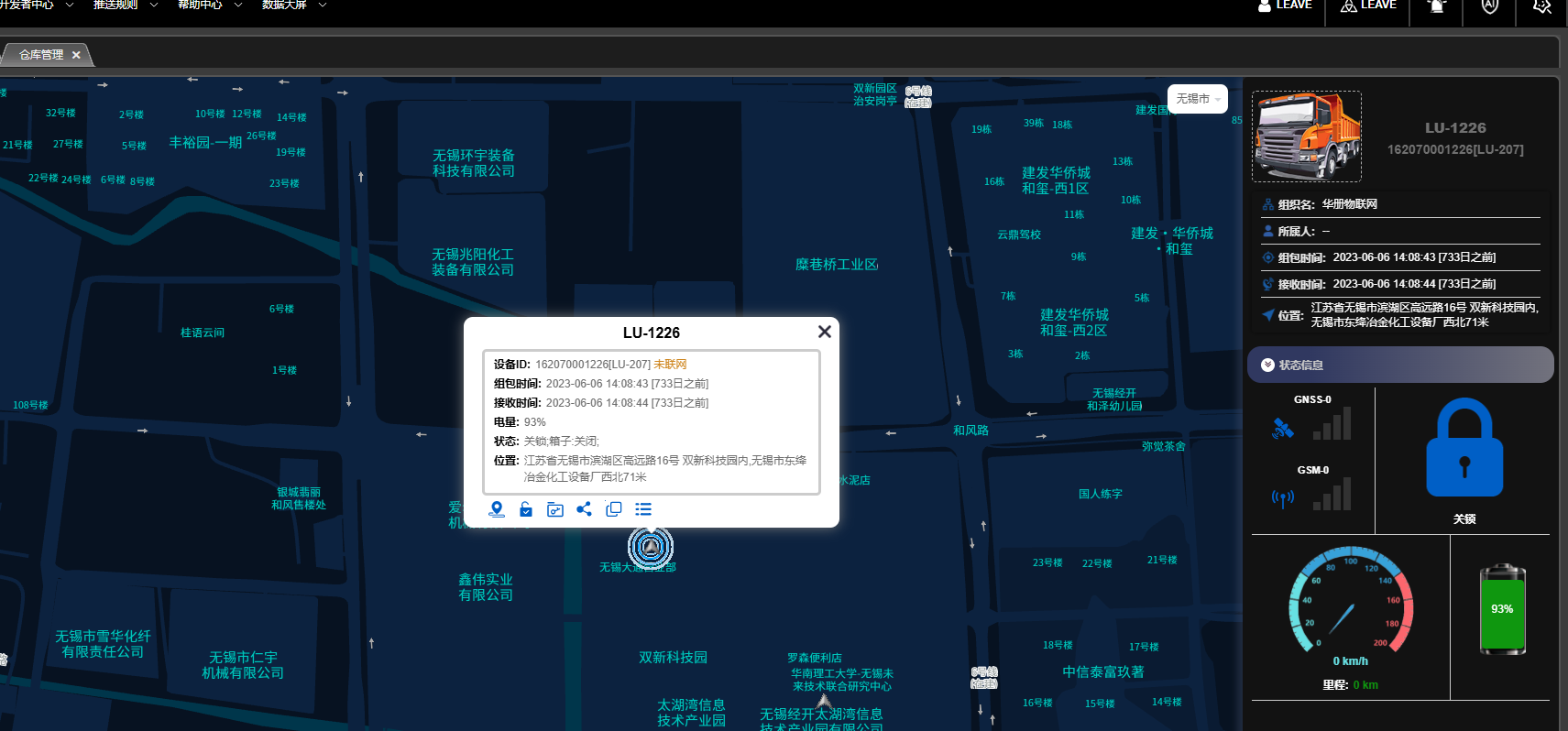

model=5(电子锁)：lockStatus:锁状态（0:关锁；1：开锁）

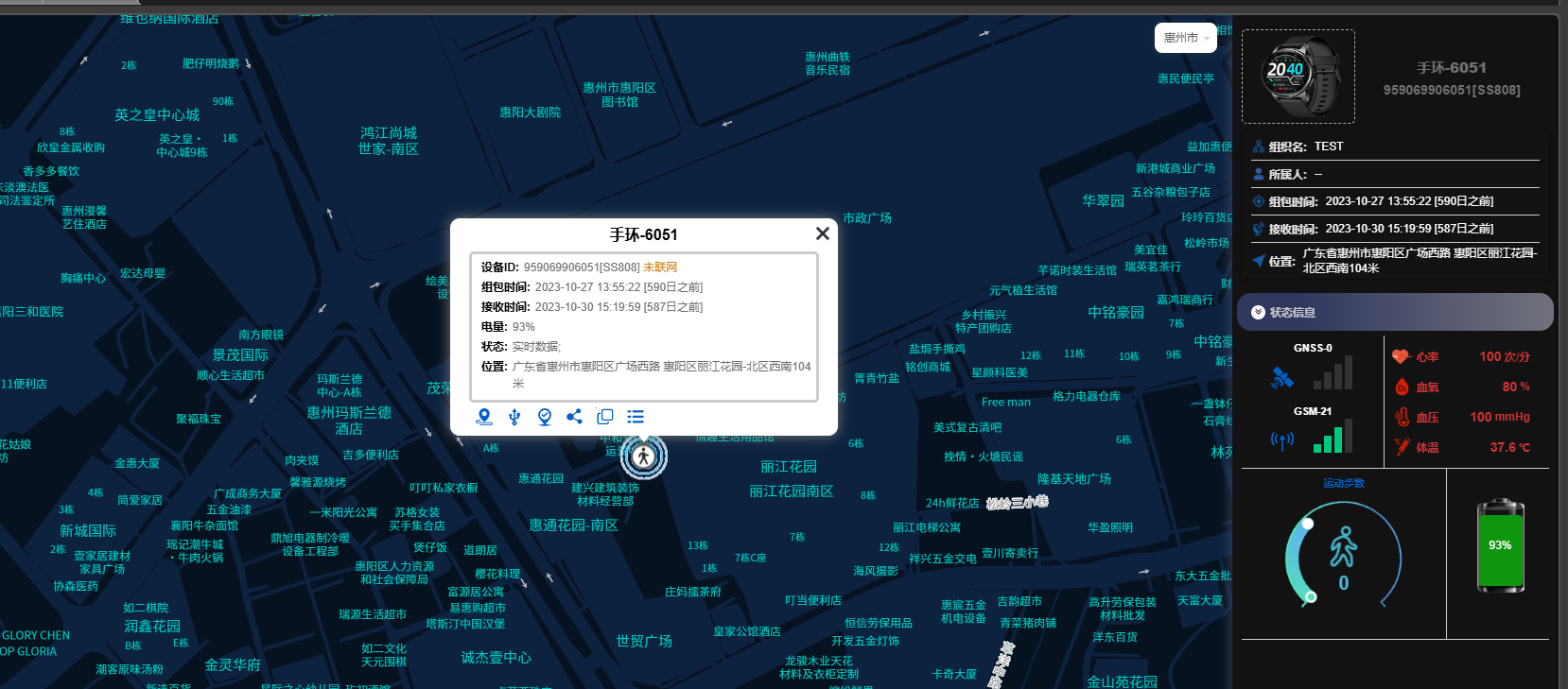

model=6(智能手表)

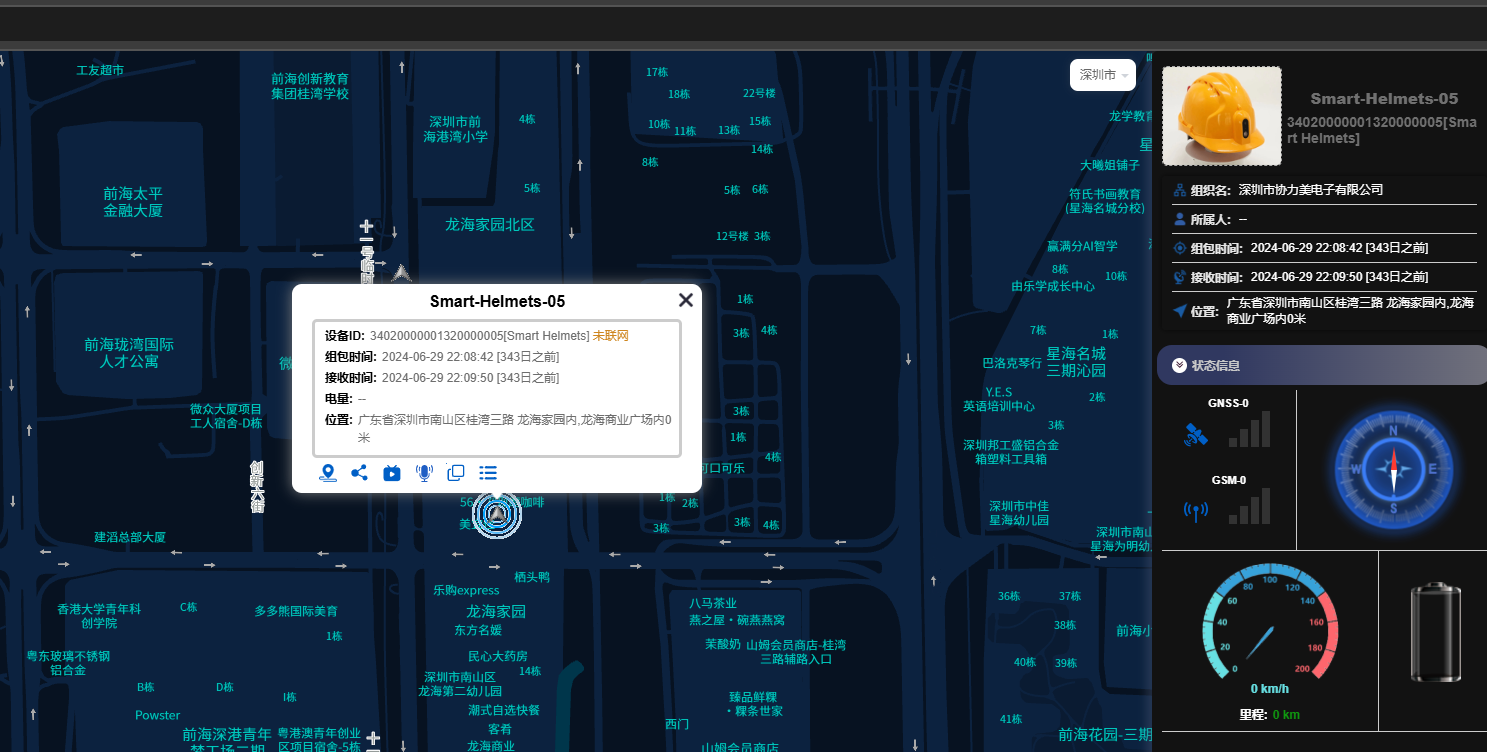

model=7(安防头盔)

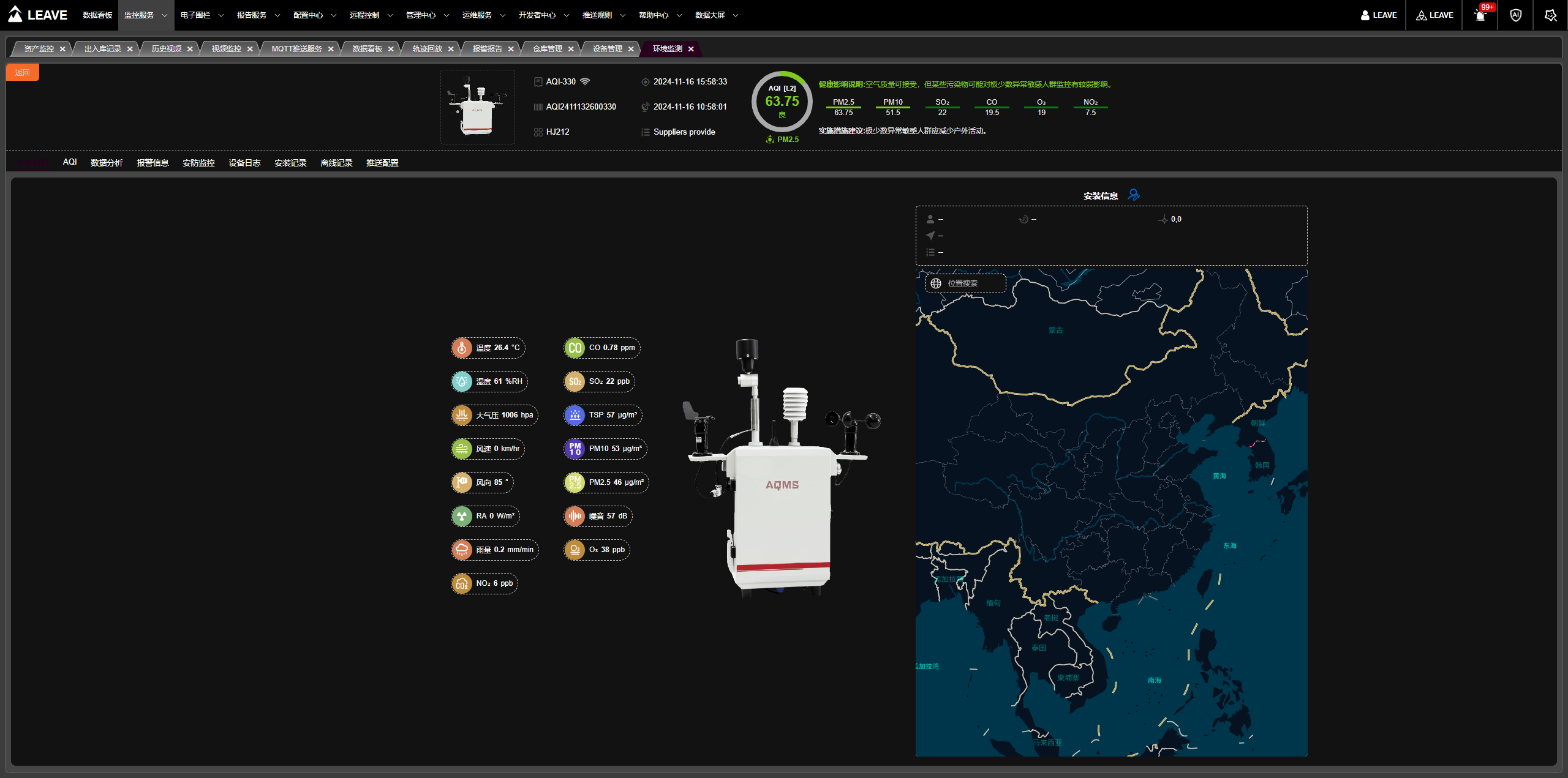

model=8(AQMS)
已经作为独立业务进行，暂时先不考虑

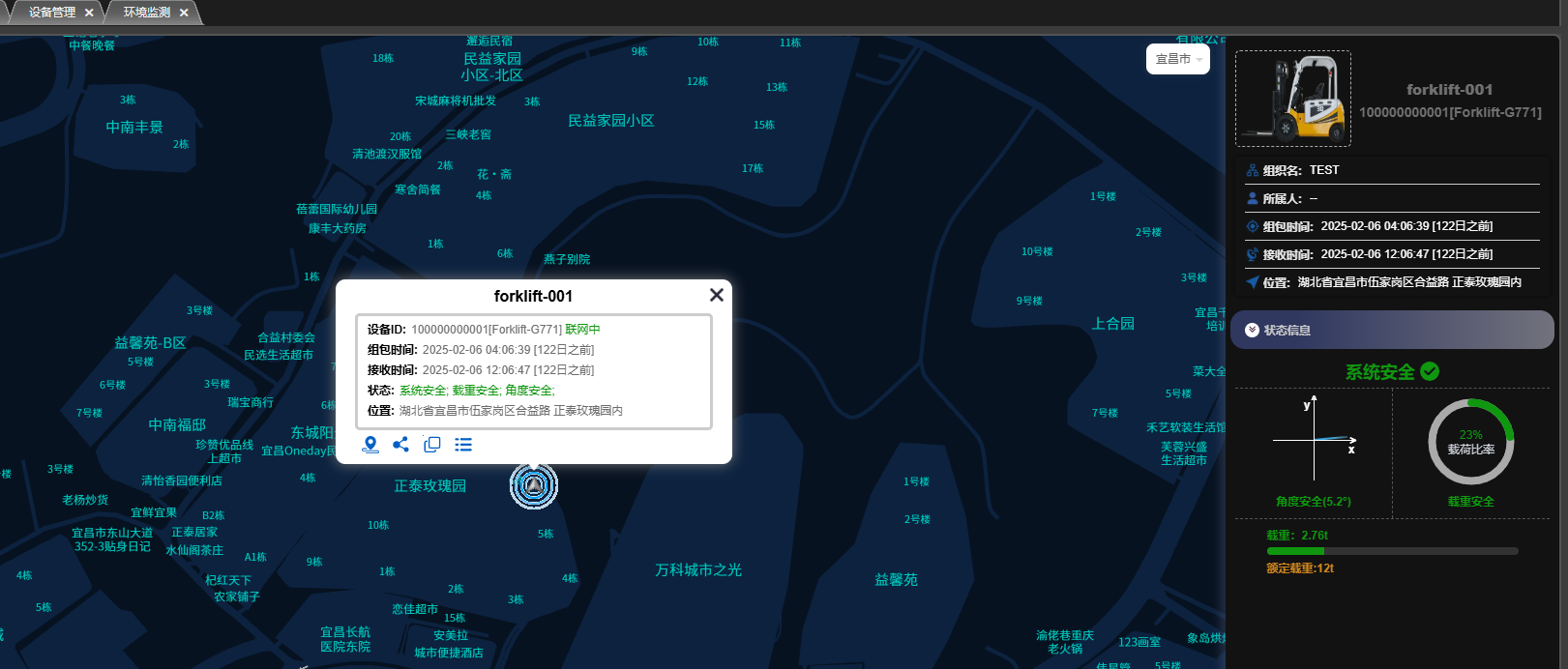

model=9(叉车控制器)

expandMap说明

根据返回字段动态显示，如果返回字段无此字段，则不显示此字段内容，在界面呈现的时候，可以将基站信息显示在拓展字段列，也可以单独显示

wifi说明

ble说明

device说明

terminalTypeCustom说明

terminalTypeFuncList说明

vehicleInfo说明

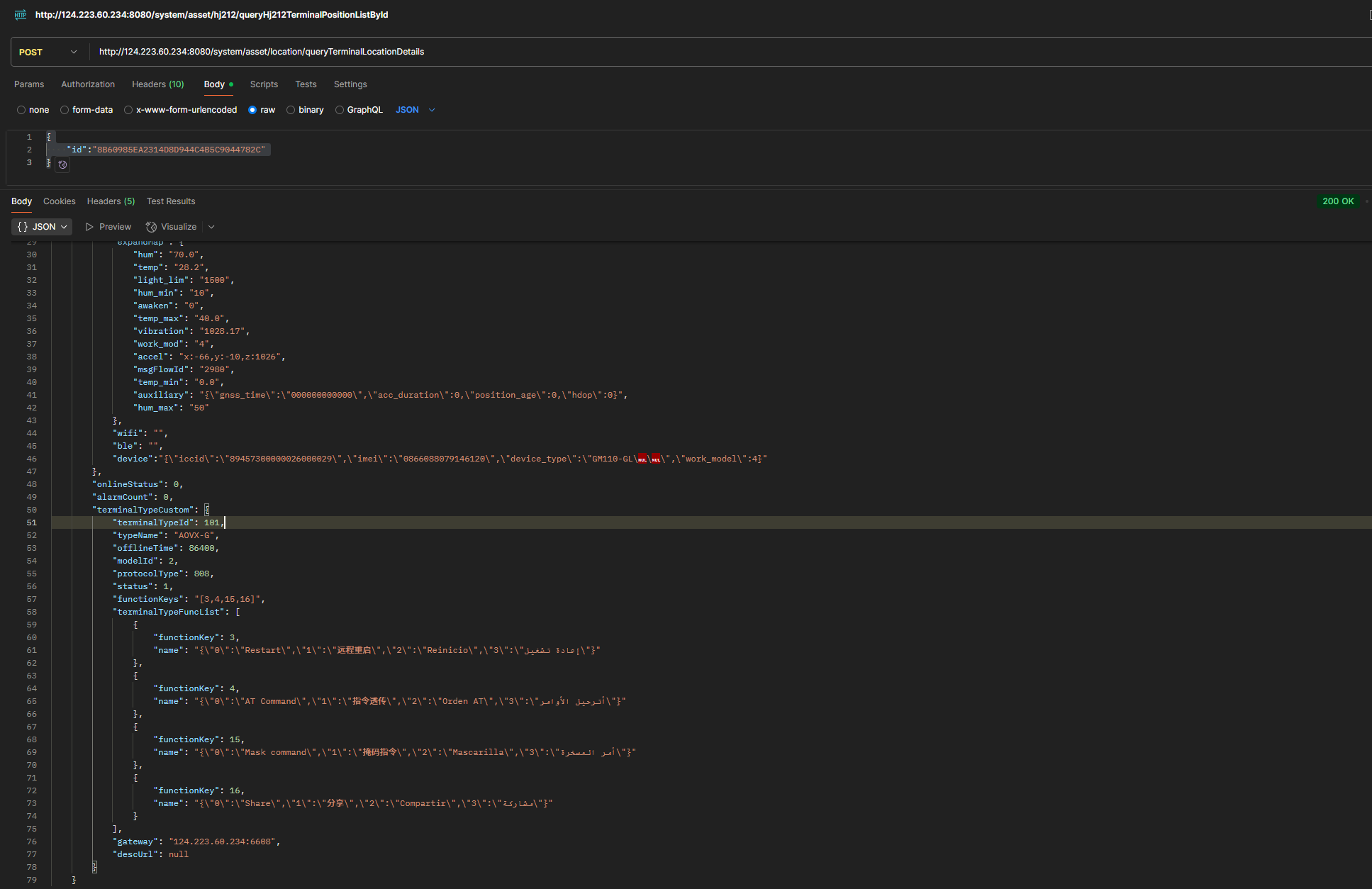

4.请求示例
