1.URL

http://124.223.60.234:8080/system/asset/operation/queryTerminalTypeOTAFiles

2.请求参数

2.1请求头

在Headers里面增加token:对应登录验证成功后，data里面对应的tokenId

2.2.参数示例

{
    "terminalTypeId":100
}

2.3.参数说明

字段 类型 说明 是否必须
terminalTypeId Int 终端类型ID Y

3.接口应答

3.1.返回示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": [
        {
            "fileSize": "218K",
            "fileTime": "2023-01-28 10:10:20",
            "fileName": "AOVX_VX3xx-XX_H1.1_V1.2.8_v13.bin",
            "filePath": "/opt/download/FOTA/808/AOVX_VX3xx-XX_H1.1_V1.2.8_v13.bin",
            "fileURL": "http://124.223.60.234:8888/FOTA/AOVX_VX3xx-XX_H1.1_V1.2.8_v13.bin"
        },
        {
            "fileSize": "143K",
            "fileTime": "2023-01-05 07:12:46",
            "fileName": "AOVX_VX3xx-XX_H2.0_V2.0.1_v08.bin",
            "filePath": "/opt/download/FOTA/808/AOVX_VX3xx-XX_H2.0_V2.0.1_v08.bin",
            "fileURL": "http://124.223.60.234:8888/FOTA/AOVX_VX3xx-XX_H2.0_V2.0.1_v08.bin"
        },
        {
            "fileSize": "144K",
            "fileTime": "2023-01-05 09:17:04",
            "fileName": "AOVX_VX3xx-XX_H2.0_V2.0.2_v08.bin",
            "filePath": "/opt/download/FOTA/808/AOVX_VX3xx-XX_H2.0_V2.0.2_v08.bin",
            "fileURL": "http://124.223.60.234:8888/FOTA/AOVX_VX3xx-XX_H2.0_V2.0.2_v08.bin"
        }
    ]
}

3.2.返回结果说明

字段 类型 说明
code int 返回状态
message String 返回结果描述
data object 返回结果体

data说明

字段 类型 说明
fileName String 文件名称
fileSize String 文件大小
fileTime String 上传时间（UTC）
fileURL String 请求URL
filePath String 文件路径

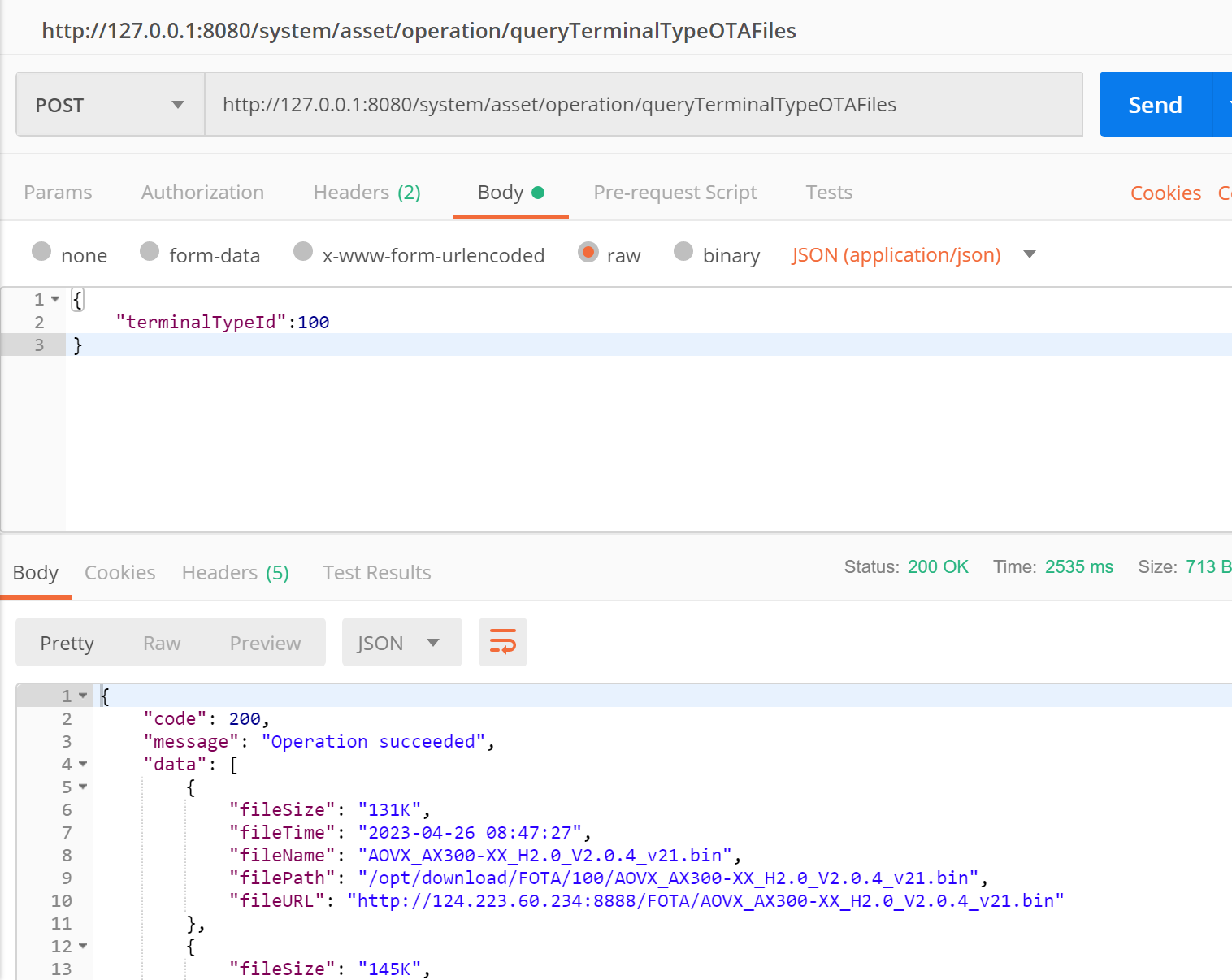

4.请求示例
