1.URL
http://124.223.60.234:8080/system/asset/configure/queryAwakenEnum
2.请求参数
2.1请求头
在Headers里面增加token:对应登录验证成功后，data里面对应的tokenId
2.2.参数示例
无3.接口应答
3.1.返回示例
{
"code": 200,
"message": "Operation succeeded",
"data": [
{
"id": 0,
"name": "{\"0\":\"Periodic sampling\",\"1\":\"周期采样\"}"
},
{
"id": 1,
"name": "{\"0\":\"Low battery trigger\",\"1\":\"低电量触发\"}"
},
{
"id": 2,
"name": "{\"0\":\"Motion trigger\",\"1\":\"运动触发\"}"
},
{
"id": 3,
"name": "{\"0\":\"Crash trigger\",\"1\":\"碰撞触发\"}"
},
{
"id": 4,
"name": "{\"0\":\"Light trigger\",\"1\":\"光照触发\"}"
},
{
"id": 5,
"name": "{\"0\":\"Humi&temp trigger\",\"1\":\"温湿度触发\"}"
},
{
"id": 6,
"name": "{\"0\":\"Temperature trigger\",\"1\":\"温度触发\"}"
},
{
"id": 7,
"name": "{\"0\":\"Humidity trigger\",\"1\":\"湿度触发\"}"
},
{
"id": 8,
"name": "{\"0\":\"Clock trigger\",\"1\":\"闹钟触发\"}"
},
{
"id": 9,
"name": "{\"0\":\"BT continuous trigger\",\"1\":\"蓝牙连接触发\"}"
},
{
"id": 64,
"name": "{\"0\":\"Periodic trigger\",\"1\":\"周期触发\"}"
},
{
"id": 65,
"name": "{\"0\":\"Power on trigger\",\"1\":\"开机触发\"}"
},
{
"id": 66,
"name": "{\"0\":\"ACC ignition\",\"1\":\"ACC点火\"}"
},
{
"id": 67,
"name": "{\"0\":\"ACC flameout\",\"1\":\"ACC熄火\"}"
},
{
"id": 68,
"name": "{\"0\":\"VCC connect\",\"1\":\"VCC连接\"}"
},
{
"id": 69,
"name": "{\"0\":\"VCC remove\",\"1\":\"VCC移除\"}"
},
{
"id": 70,
"name": "{\"0\":\"Virtual ignition(Gsensor)\",\"1\":\"虚拟点火(Gsensor)\"}"
},
{
"id": 71,
"name": "{\"0\":\"Virtual ignition(GNSSAST)\",\"1\":\"虚拟点火(GNSSAST)\"}"
},
{
"id": 72,
"name": "{\"0\":\"Virtual flameout(Gsensor)\",\"1\":\"虚拟熄火(Gsensor)\"}"
},
{
"id": 73,
"name": "{\"0\":\"Corner trigger\",\"1\":\"拐点触发\"}"
},
{
"id": 74,
"name": "{\"0\":\"Overspeed trigger\",\"1\":\"超速触发\"}"
},
{
"id": 75,
"name": "{\"0\":\"OTA start\",\"1\":\"OTA启动\"}"
},
{
"id": 76,
"name": "{\"0\":\"OTA succeed\",\"1\":\"OTA成功\"}"
},
{
"id": 77,
"name": "{\"0\":\"OTA failed\",\"1\":\"OTA失败\"}"
},
{
"id": 78,
"name": "{\"0\":\"GNSS first fixed\",\"1\":\"首次定位\"}"
},
{
"id": 79,
"name": "{\"0\":\"Low voltage trigger\",\"1\":\"低压触发\"}"
},
{
"id": 80,
"name": "{\"0\":\"Low voltage release\",\"1\":\"低压解除\"}"
},
{
"id": 81,
"name": "{\"0\":\"Jamming trigger\",\"1\":\"JAMMING触发\"}"
},
{
"id": 82,
"name": "{\"0\":\"distance trigger\",\"1\":\"距离触发\"}"
},
{
"id": 83,
"name": "{\"0\":\"crash trigger\",\"1\":\"碰撞触发\"}"
},
{
"id": 84,
"name": "{\"0\":\"DI1 trigger\",\"1\":\"DI1触发\"}"
},
{
"id": 85,
"name": "{\"0\":\"DI2 trigger\",\"1\":\"DI2触发\"}"
},
{
"id": 86,
"name": "{\"0\":\"DI3 trigger\",\"1\":\"DI3触发\"}"
},
{
"id": 87,
"name": "{\"0\":\"DI4 trigger\",\"1\":\"DI4触发\"}"
},
{
"id": 88,
"name": "{\"0\":\"DI5 trigger\",\"1\":\"DI5触发\"}"
},
{
"id": 89,
"name": "{\"0\":\"DI6 trigger\",\"1\":\"DI6触发\"}"
},
{
"id": 90,
"name": "{\"0\":\"DI7 trigger\",\"1\":\"DI7触发\"}"
},
{
"id": 91,
"name": "{\"0\":\"DI8 trigger\",\"1\":\"DI8触发\"}"
},
{
"id": 92,
"name": "{\"0\":\"DI9 trigger\",\"1\":\"DI9触发\"}"
},
{
"id": 93,
"name": "{\"0\":\"DI10 trigger\",\"1\":\"DI10触发\"}"
},
{
"id": 94,
"name": "{\"0\":\"AI upper limit trigger\",\"1\":\"AI上限触发\"}"
},
{
"id": 95,
"name": "{\"0\":\"AI lower limit trigger\",\"1\":\"AI下限触发\"}"
},
{
"id": 96,
"name": "{\"0\":\"battery low voltage trigger\",\"1\":\"电池低压触发\"}"
},
{
"id": 97,
"name": "{\"0\":\"battery low voltage release\",\"1\":\"电池低压解除\"}"
},
{
"id": 98,
"name": "{\"0\":\"battery start charging\",\"1\":\"电池开始充电\"}"
},
{
"id": 99,
"name": "{\"0\":\"battery full charged\",\"1\":\"电池充满\"}"
},
{
"id": 100,
"name": "{\"0\":\"soft reset trigger\",\"1\":\"软复位触发\"}"
},
{
"id": 101,
"name": "{\"0\":\"virtual ignition(voltage)\",\"1\":\"虚拟点火(Voltage)\"}"
},
{
"id": 102,
"name": "{\"0\":\"virtual flameout(voltage)\",\"1\":\"虚拟熄火(Voltage)\"}"
},
{
"id": 103,
"name": "{\"0\":\"TOW start\",\"1\":\"TOW开始\"}"
},
{
"id": 104,
"name": "{\"0\":\"TOW stop\",\"1\":\"TOW停止\"}"
},
{
"id": 105,
"name": "{\"0\":\"enter GEO-Fence\",\"1\":\"进入电子围栏\"}"
},
{
"id": 106,
"name": "{\"0\":\"exit GEO-Fence\",\"1\":\"离开电子围栏\"}"
},
{
"id": 107,
"name": "{\"0\":\"WAKEUP\",\"1\":\"深度休眠周期唤醒\"}"
},
{
"id": 108,
"name": "{\"0\":\"DI1_UP\",\"1\":\"DI1解除\"}"
},
{
"id": 109,
"name": "{\"0\":\"SPEED_U\",\"1\":\"急加速\"}"
},
{
"id": 110,
"name": "{\"0\":\"SPEED_D\",\"1\":\"急减速\"}"
},
{
"id": 111,
"name": "{\"0\":\"SPEED_T\",\"1\":\"急转弯\"}"
},
{
"id": 112,
"name": "{\"0\":\"ACCELER\",\"1\":\"加速度点火\"}"
},
{
"id": 113,
"name": "{\"0\":\"NOJAMMING\",\"1\":\"退出干扰\"}"
},
{
"id": 114,
"name": "{\"0\":\"AT_REPORT\",\"1\":\"立即上报\"}"
},
{
"id": 115,
"name": "{\"0\":\"TOWMILE\",\"1\":\"TOW距离报警\"}"
},
{
"id": 116,
"name": "{\"0\":\"CARIDLE\",\"1\":\"怠速报警\"}"
},
{
"id": 117,
"name": "{\"0\":\"OUTOFIDLE\",\"1\":\"退出怠速\"}"
},
{
"id": 118,
"name": "{\"0\":\"PARKALERT\",\"1\":\"停车报警\"}"
},
{
"id": 119,
"name": "{\"0\":\"SLOWSPEED\",\"1\":\"低速报警\"}"
},
{
"id": 200,
"name": "{\"0\":\"Reboot\",\"1\":\"重启\"}"
},
{
"id": 201,
"name": "{\"0\":\"RTC\",\"1\":\"RTC唤醒\"}"
},
{
"id": 202,
"name": "{\"0\":\"Vibration\",\"1\":\"震动\"}"
},
{
"id": 203,
"name": "{\"0\":\"Rear cover opening\",\"1\":\"开后盖\"}"
},
{
"id": 204,
"name": "{\"0\":\"Lock rope\",\"1\":\"锁绳\"}"
},
{
"id": 205,
"name": "{\"0\":\"Charging\",\"1\":\"充电\"}"
},
{
"id": 206,
"name": "{\"0\":\"Card swiping\",\"1\":\"刷卡\"}"
},
{
"id": 207,
"name": "{\"0\":\"Door magnet\",\"1\":\"门磁\"}"
},
{
"id": 208,
"name": "{\"0\":\"VIP number\",\"1\":\"VIP号码唤醒\"}"
},
{
"id": 209,
"name": "{\"0\":\"Non VIP SMS or junk SMS\",\"1\":\"非VIP短信或垃圾短信\"}"
},
{
"id": 210,
"name": "{\"0\":\"Bluetooth\",\"1\":\"蓝牙唤醒\"}"
},
{
"id": 211,
"name": "{\"0\":\"Temp&humi abnormal\",\"1\":\"温湿度异常唤醒\"}"
},
{
"id": 212,
"name": "{\"0\":\"pressure abnormal\",\"1\":\"气压异常唤醒\"}"
},
{
"id": 213,
"name": "{\"0\":\"Key\",\"1\":\"按键\"}"
},
{
"id": 214,
"name": "{\"0\":\"Door opening\",\"1\":\"开关门\"}"
},
{
"id": 215,
"name": "{\"0\":\"Light abnormal\",\"1\":\"光照度异常\"}"
}
]
}3.2.返回结果说明
| 字段 | 类型 | 说明 |
|---|---|---|
| code | int | 返回状态 |
| message | String | 返回结果描述 |
| data | object | 返回结果体 |
data说明
| 字段 | 类型 | 说明 |
|---|---|---|
| id | int | 唤醒源类型Id |
| name | String | 唤醒源类型名称（0：英文；1：中文） |

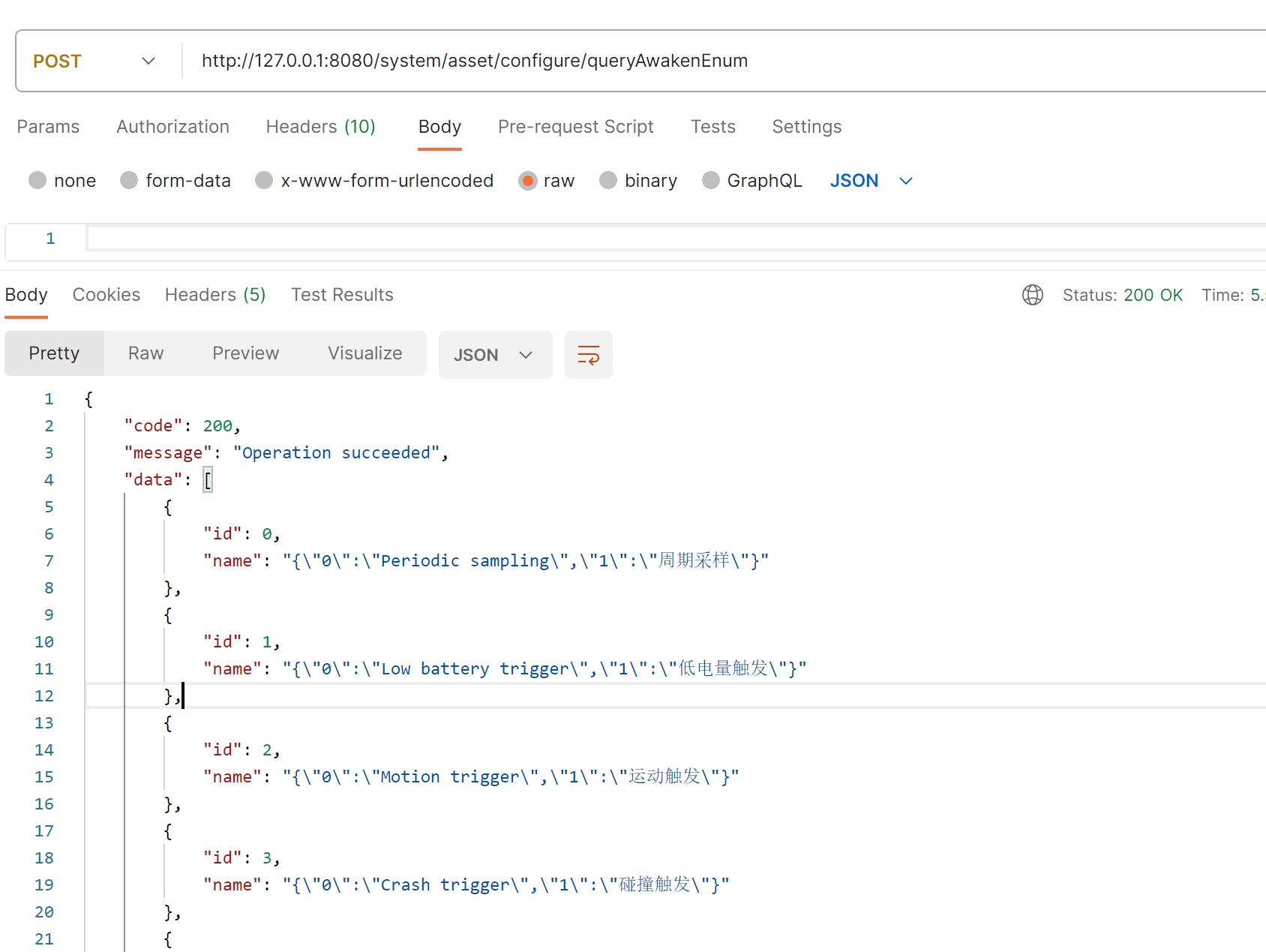

4.请求示例
