1.URL

http://124.223.60.234:8080/system/asset/home/queryTopTerminalAlarm

2.请求参数

2.1请求头

在Headers里面增加token:对应登录验证成功后，data里面对应的tokenId

2.2.参数示例

{
    "limitNum":10,
    "systemId":-1
}

2.3.参数说明

字段 类型 说明 是否必须
limitNum int 前多少条，数值 Y
systemId int 报警系统类型ID，-1：查询全部报警类型；0：查询常规报警类型；1：查询所有主动安全报警类型；其他可根据报警系统ID针对某个报警系统的报警类型进行查询 Y

3.接口应答

3.1.返回示例

{
    "code": 200,
    "message": "Operation succeeded",
    "data": [
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"57.9\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,42",
            "gnssTime": "2023-05-18 04:32:48",
            "gnssTimestamp": 1684384368000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"57.6\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,42",
            "gnssTime": "2023-05-18 04:31:48",
            "gnssTimestamp": 1684384308000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"57.0\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,41",
            "gnssTime": "2023-05-18 04:30:48",
            "gnssTimestamp": 1684384248000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.4\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,40",
            "gnssTime": "2023-05-18 04:29:47",
            "gnssTimestamp": 1684384187000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.1\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,44",
            "gnssTime": "2023-05-18 04:28:48",
            "gnssTimestamp": 1684384128000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.1\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,43",
            "gnssTime": "2023-05-18 04:27:48",
            "gnssTimestamp": 1684384068000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.6\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,42",
            "gnssTime": "2023-05-18 04:26:48",
            "gnssTimestamp": 1684384008000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.7\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,39",
            "gnssTime": "2023-05-18 04:25:50",
            "gnssTimestamp": 1684383950000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.9\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,39",
            "gnssTime": "2023-05-18 04:24:50",
            "gnssTimestamp": 1684383890000
        },
        {
            "terminalId": "9301476EF79340999772DCB315C53C93",
            "terminalNum": "413050769677",
            "vehicleId": "2E149A95FD9B44F192F4C445526D412B",
            "vehicleNum": "G-9677",
            "alarmType": 201,
            "alarmDesc": "{\"current\":\"56.2\",\"threshold\":\"50\",\"type\":\"3\"}",
            "lat": 31.8321857452393,
            "lon": 117.094436645508,
            "lbsCells": "460,0,21771,27757,39",
            "gnssTime": "2023-05-18 04:23:49",
            "gnssTimestamp": 1684383829000
        }
    ]
}

3.2.返回结果说明

字段 类型 说明
code int 返回状态
message String 返回结果描述
data object 返回结果体

data说明

字段 类型 说明
terminalId String 终端系统唯一标识
terminalNum String 终端编号
vehicleId String 资产系统唯一标识
vehicleNum String 资产编号
alarmType Integer 报警类型ID
alarmDesc String 报警描述
lat Double 纬度(WGS-84)
lon Double 经度(WGS-84)
lbsCells String 基站信息 (格式: mcc,mnc,lac,ci,rssi)
gnssTime String 定位时间 (UTC)
gnssTimestamp long 定位时间戳（millisecond）

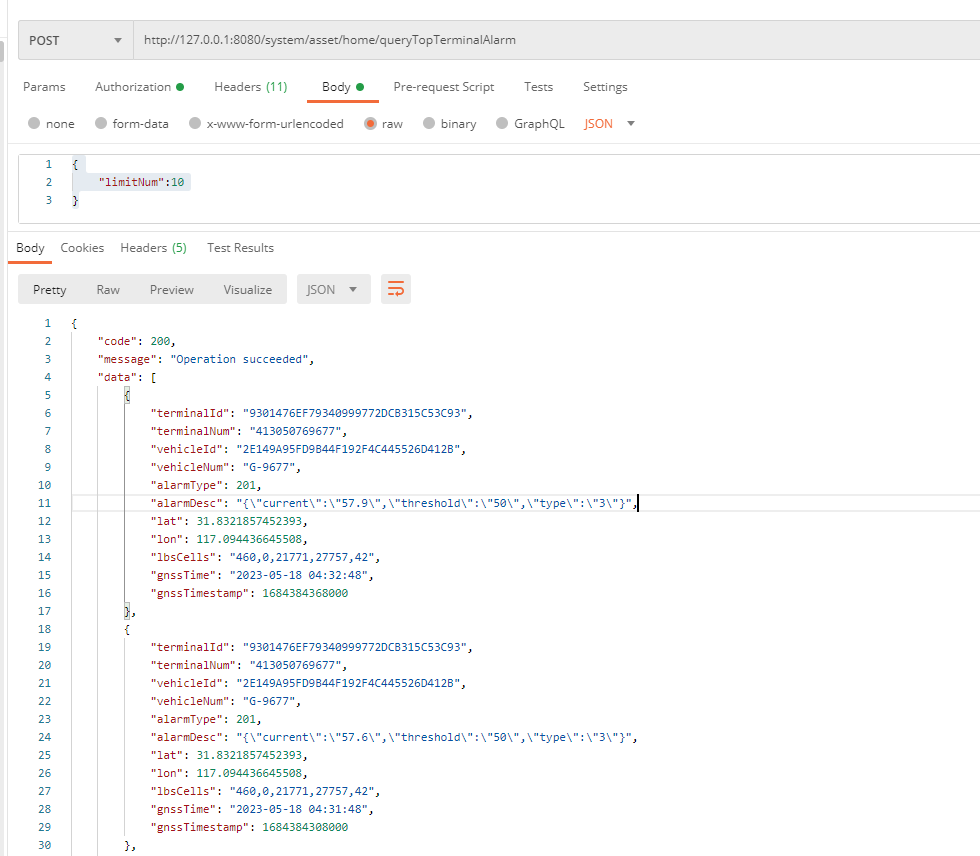

4.请求示例

Author：admin  Create time：2023-05-18 12:40
Last editor：admin  Update time：2025-10-31 14:50
