1.URL
http://124.223.60.234:8080/system/asset/configure/queryPushDataLog
2.请求参数
2.1请求头
在Headers里面增加token:对应登录验证成功后，data里面对应的tokenId
2.2.参数示例
{
"ids":["C0EBA04F40394ACCB794B2A8868C5CB5","C9019BFCFE5A4CF094107ED6D4ED552E"],
"startTime":"2023-10-07 16:00:00",
"endTime":"2023-10-08 16:00:00",
"queryType":-1,
"pageNum":1,
"pageSize":20
}2.3.参数说明
| 字段 | 类型 | 说明 | 是否必须 |
|---|---|---|---|
| ids | List | 终端唯一标识集合 | Y |
| startTime | String | 开始时间（UTC） | Y |
| endTime | String | 结束时间（UTC） | Y |
| queryType | int | 数据类型（-1：全部；1：定位数据；2：报警数据；3：指令应答;4:事件数据） | Y |
| responseStatus | int | 推送结果（-1:查询全部；0:失败；1：成功） | Y |
| pageNum | int | 第几页 | Y |
| pageSize | int | 每页条数 | Y |
3.接口应答

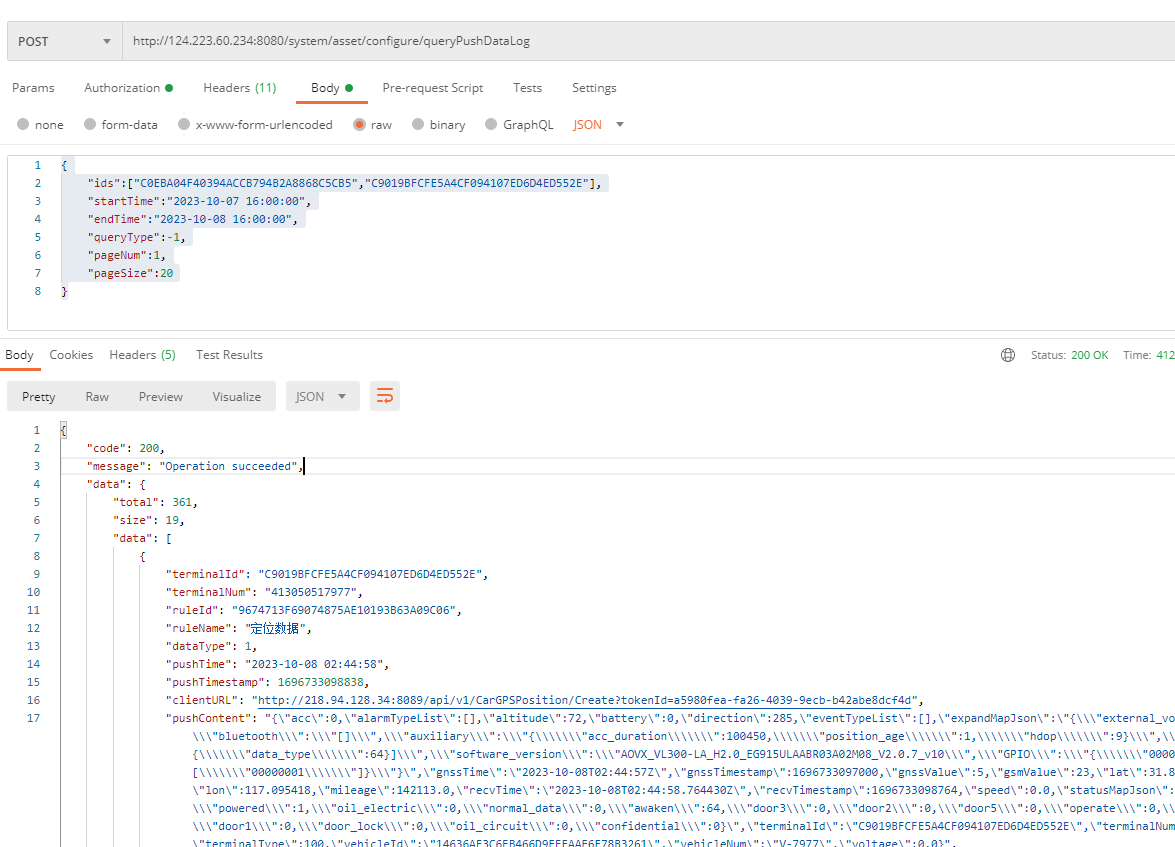

3.1.返回示例
{
"code": 200,
"message": "Operation succeeded",
"data": {
"total": 361,
"size": 19,
"data": [
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:58",
"pushTimestamp": 1696733098838,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":285,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:57Z\",\"gnssTimestamp\":1696733097000,\"gnssValue\":5,\"gsmValue\":23,\"lat\":31.832926,\"locationType\":1,\"lon\":117.095418,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:58.764430Z\",\"recvTimestamp\":1696733098764,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"949843f6-41b6-4b1b-9c4c-0e557f372705\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 72
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:53",
"pushTimestamp": 1696733093741,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":285,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":10}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:52Z\",\"gnssTimestamp\":1696733092000,\"gnssValue\":10,\"gsmValue\":24,\"lat\":31.832928,\"locationType\":1,\"lon\":117.095413,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:53.676402Z\",\"recvTimestamp\":1696733093676,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"d3d21a7f-4e18-474a-a5e9-265d213d66af\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 62
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:48",
"pushTimestamp": 1696733088825,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":285,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:47Z\",\"gnssTimestamp\":1696733087000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832928,\"locationType\":1,\"lon\":117.09541,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:48.760527Z\",\"recvTimestamp\":1696733088760,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"ef742e2a-848a-4e82-b731-5dc16748822d\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 63
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:43",
"pushTimestamp": 1696733083879,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":285,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:42Z\",\"gnssTimestamp\":1696733082000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832928,\"locationType\":1,\"lon\":117.095405,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:43.816764Z\",\"recvTimestamp\":1696733083816,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"e5d84b7a-75fb-44d4-82a6-344e3cbcbab7\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 61
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:38",
"pushTimestamp": 1696733078941,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":285,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:37Z\",\"gnssTimestamp\":1696733077000,\"gnssValue\":11,\"gsmValue\":24,\"lat\":31.83293,\"locationType\":1,\"lon\":117.095405,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:38.876966Z\",\"recvTimestamp\":1696733078876,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"6d74e547-5435-47cc-a894-5a71d841f636\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 62
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:34",
"pushTimestamp": 1696733074024,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":285,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:32Z\",\"gnssTimestamp\":1696733072000,\"gnssValue\":11,\"gsmValue\":25,\"lat\":31.83293,\"locationType\":1,\"lon\":117.095406,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:33.956400Z\",\"recvTimestamp\":1696733073956,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"072a135d-1c70-4120-8ee4-6160adf3b33a\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 66
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:29",
"pushTimestamp": 1696733069081,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:27Z\",\"gnssTimestamp\":1696733067000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832933,\"locationType\":1,\"lon\":117.095453,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:29.016449Z\",\"recvTimestamp\":1696733069016,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"fb3ae9a0-024b-4536-bf4e-b83396ef6472\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 63
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:24",
"pushTimestamp": 1696733064142,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:22Z\",\"gnssTimestamp\":1696733062000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832935,\"locationType\":1,\"lon\":117.095463,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:24.076938Z\",\"recvTimestamp\":1696733064076,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"4ec6c5fd-a339-4345-ad23-383ccf48d1a9\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 63
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:19",
"pushTimestamp": 1696733059219,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":72,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:17Z\",\"gnssTimestamp\":1696733057000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.83294,\"locationType\":1,\"lon\":117.095465,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:19.152440Z\",\"recvTimestamp\":1696733059152,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"4a879ccc-5725-43a5-a466-1968965acd74\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 64
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:14",
"pushTimestamp": 1696733054303,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:12Z\",\"gnssTimestamp\":1696733052000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.83294,\"locationType\":1,\"lon\":117.095463,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:14.192451Z\",\"recvTimestamp\":1696733054192,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"88ec05c0-3517-4ff5-be8c-5c6fd084bee6\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 108
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:09",
"pushTimestamp": 1696733049325,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:07Z\",\"gnssTimestamp\":1696733047000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832941,\"locationType\":1,\"lon\":117.095465,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:09.256821Z\",\"recvTimestamp\":1696733049256,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"6396f8e7-cc40-4537-8e41-c1acbc986fd7\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 67
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:44:05",
"pushTimestamp": 1696733045240,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":69,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:44:02Z\",\"gnssTimestamp\":1696733042000,\"gnssValue\":11,\"gsmValue\":24,\"lat\":31.832941,\"locationType\":1,\"lon\":117.095471,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:44:05.176402Z\",\"recvTimestamp\":1696733045176,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"5d9bcc26-e416-4006-9438-621eeb9ea66d\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 61
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:59",
"pushTimestamp": 1696733039460,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":69,\"battery\":0,\"direction\":18,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100450,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":104}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:57Z\",\"gnssTimestamp\":1696733037000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832943,\"locationType\":1,\"lon\":117.095475,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:59.396411Z\",\"recvTimestamp\":1696733039396,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":0,\\\"awaken\\\":104,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"60125512-fa45-41b8-a70b-a436c0463bf1\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 61
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:55",
"pushTimestamp": 1696733035295,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100446,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:53Z\",\"gnssTimestamp\":1696733033000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832921,\"locationType\":1,\"lon\":117.095466,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:55.244464Z\",\"recvTimestamp\":1696733035244,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"51744ece-4251-4b81-b5d5-ca62c98e6f9c\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 47
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:50",
"pushTimestamp": 1696733030495,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100441,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":10}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:48Z\",\"gnssTimestamp\":1696733028000,\"gnssValue\":10,\"gsmValue\":24,\"lat\":31.832921,\"locationType\":1,\"lon\":117.095466,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:50.436440Z\",\"recvTimestamp\":1696733030436,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"57c91488-73df-4d06-87fc-8e4eea9bac79\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 56
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:45",
"pushTimestamp": 1696733025420,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100436,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":10}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:43Z\",\"gnssTimestamp\":1696733023000,\"gnssValue\":10,\"gsmValue\":24,\"lat\":31.832923,\"locationType\":1,\"lon\":117.095466,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:45.356448Z\",\"recvTimestamp\":1696733025356,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"ecf10294-3538-41a4-b23f-5f775a9328e4\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 61
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:40",
"pushTimestamp": 1696733020501,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100432,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:39Z\",\"gnssTimestamp\":1696733019000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832923,\"locationType\":1,\"lon\":117.095468,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:40.432555Z\",\"recvTimestamp\":1696733020432,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"a8b7e0bd-54dc-4ff6-8369-487c03f43e67\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 64
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:35",
"pushTimestamp": 1696733015541,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100427,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":9}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:34Z\",\"gnssTimestamp\":1696733014000,\"gnssValue\":11,\"gsmValue\":23,\"lat\":31.832923,\"locationType\":1,\"lon\":117.095468,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:35.476537Z\",\"recvTimestamp\":1696733015476,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"8ce0e736-84fc-4a6c-ae10-708066696464\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 62
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:30",
"pushTimestamp": 1696733010598,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.340\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100422,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":10}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:29Z\",\"gnssTimestamp\":1696733009000,\"gnssValue\":10,\"gsmValue\":23,\"lat\":31.832923,\"locationType\":1,\"lon\":117.095468,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:30.536548Z\",\"recvTimestamp\":1696733010536,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"3570d3dc-73ab-4162-986c-4783bc608907\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 59
},
{
"terminalId": "C9019BFCFE5A4CF094107ED6D4ED552E",
"terminalNum": "413050517977",
"ruleId": "9674713F69074875AE10193B63A09C06",
"ruleName": "定位数据",
"dataType": 1,
"pushTime": "2023-10-08 02:43:25",
"pushTimestamp": 1696733005700,
"clientURL": "http://218.94.128.34:8089/api/v1/CarGPSPosition/Create?tokenId=a5980fea-fa26-4039-9ecb-b42abe8dcf4d",
"pushContent": "{\"acc\":0,\"alarmTypeList\":[],\"altitude\":70,\"battery\":0,\"direction\":296,\"eventTypeList\":[],\"expandMapJson\":\"{\\\"external_voltage\\\":\\\"14.282\\\",\\\"bluetooth\\\":\\\"[]\\\",\\\"auxiliary\\\":\\\"{\\\\\\\"acc_duration\\\\\\\":100417,\\\\\\\"position_age\\\\\\\":1,\\\\\\\"hdop\\\\\\\":10}\\\",\\\"sensor\\\":\\\"[{\\\\\\\"data_type\\\\\\\":64}]\\\",\\\"software_version\\\":\\\"AOVX_VL300-LA_H2.0_EG915ULAABR03A02M08_V2.0.7_v10\\\",\\\"GPIO\\\":\\\"{\\\\\\\"00000000\\\\\\\":[\\\\\\\"00000001\\\\\\\"]}\\\"}\",\"gnssTime\":\"2023-10-08T02:43:24Z\",\"gnssTimestamp\":1696733004000,\"gnssValue\":10,\"gsmValue\":24,\"lat\":31.832923,\"locationType\":1,\"lon\":117.095468,\"mileage\":142113.0,\"recvTime\":\"2023-10-08T02:43:25.636443Z\",\"recvTimestamp\":1696733005636,\"speed\":0.0,\"statusMapJson\":\"{\\\"realtime_data\\\":0,\\\"powered\\\":1,\\\"oil_electric\\\":0,\\\"normal_data\\\":1,\\\"awaken\\\":64,\\\"door3\\\":0,\\\"door2\\\":0,\\\"door5\\\":0,\\\"operate\\\":0,\\\"door4\\\":0,\\\"load\\\":0,\\\"door1\\\":0,\\\"door_lock\\\":0,\\\"oil_circuit\\\":0,\\\"confidential\\\":0}\",\"terminalId\":\"C9019BFCFE5A4CF094107ED6D4ED552E\",\"terminalNum\":\"413050517977\",\"terminalType\":100,\"vehicleId\":\"14636AF3C6EB466D9EEFAAE6F78B3261\",\"vehicleNum\":\"V-7977\",\"voltage\":0.0}",
"responseStatus": 200,
"responseResult": "{\"entity\":\"1eb84f4d-cd77-40ab-a8ba-6368780ea6b5\",\"code\":200,\"title\":\"成功\",\"messages\":[]}",
"execDuration": 61
}
]
}
}3.2.返回结果说明
| 字段 | 类型 | 说明 |
|---|---|---|
| code | int | 返回状态 |
| message | String | 返回结果描述 |
| data | object | 返回结果体 |
data 详情
| 字段 | 类型 | 说明 |
|---|---|---|
| total | String | 总条数 |
| size | String | 多少页 |
| data | object | 每页的结果集合 |
data 详情
| 字段 | 类型 | 说明 |
|---|---|---|
| terminalId | String | 终端唯一标识 |
| terminalNum | String | 终端S/N |
| ruleId | String | 推送规则唯一标识 |
| ruleName | String | 推送规则名称 |
| dataType | int | 数据类型（1：定位数据；2：报警数据；3：指令应答;4:事件数据） |
| pushTime | String | 推送时间（UTC） |
| pushTimestamp | long | 推送时间UNIX时间戳 |
| clientURL | String | 客户端地址 |
| pushContent | String | 推送消息体 |
| responseStatus | int | 执行状态 |
| responseResult | String | 应答结果 |
| execDuration | int | 执行耗时（单位：ms) |
4.请求示例
作者：admin 创建时间：2023-10-08 11:03
最后编辑：admin 更新时间：2025-04-23 17:26
最后编辑：admin 更新时间：2025-04-23 17:26
